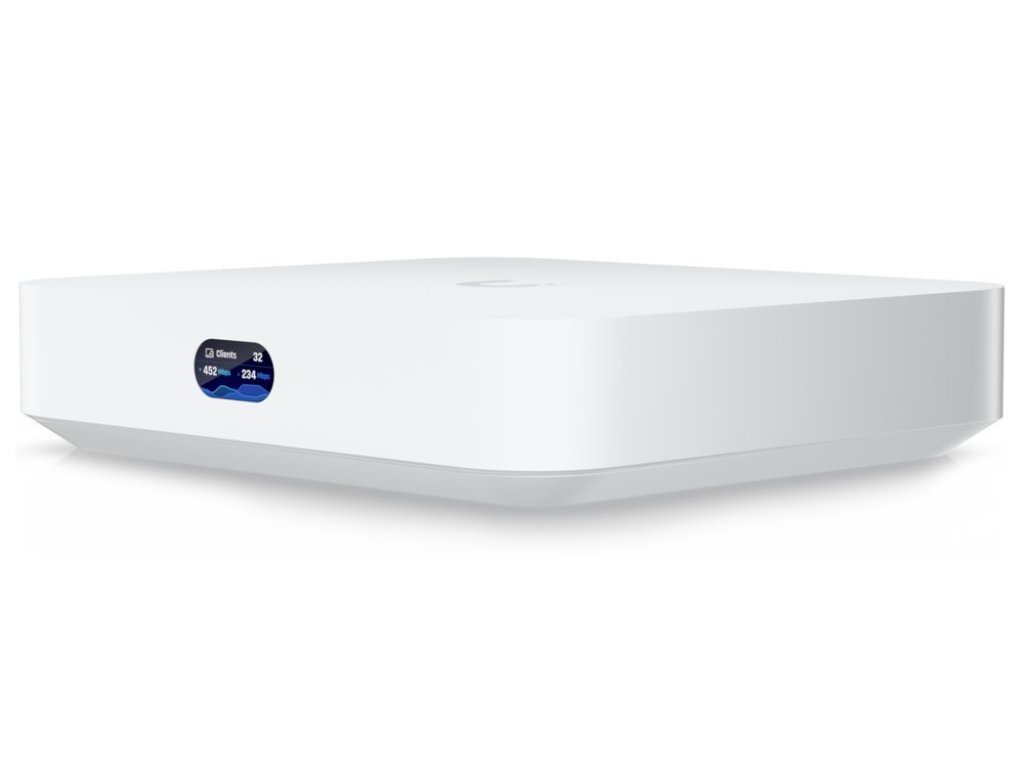

UBIQUITI UniFi Cloud Gateway Ultra (UCG-Ultra)

Kompaktní, výkonná a multi-WAN UniFi Cloud brána s kompletní sadou bezpecnostních služeb IDS/IPS a pokrocilými funkcemi smerování a zabepecení datové provozu.

Provoz na síti UniFi Network pro komplexní správu síte.

WAN port 1x 2,5Gbps

LAN port 4x 1Gbps

integrovaný UniFi controller s aplikací UniFi Networks (až 30 zarízení a až 300 klientu)

Technical Specifications

Mechanical

Dimensions 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")

Weight 520 g (1.1 lb)

Enclosure material Polycarbonate

Hardware

Procesor Quad-core ARM® Cortex®-A53 at 1.5 GHz

System memory 3 GB DDR4

On-board storage 16 GB eMMC

Management interface Ethernet

Bluetooth

Networking interface LAN:

(4) GbE RJ45 ports

WAN:

(1) 1/2.5 GbE RJ45 port

IDS/IPS throughput 1 Gbps

Power metod USB typu C (5V DC/3A)

Supported voltage range 100–240V AC

Max.
power consumption 6.2W

LCM display 0.96" status display

Button Factory reset

Ambient operating temperature-10 až 40° C (14 až 104° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications CE, FCC, IC

Gateway Features

Performance

Redundant WAN with failover and load balancing

WiFi QoS s UniFi APs

Application, domain, and country-based QoS

Application and device type identification

Additional internet failover with LTE Backup

Internet quality and outage reporting

Next-generation security

Application-aware firewall rules

Signature-based IPS/IDS threat detection

Content, country, domain, a ad filtering

VLAN/subnet-based traffic segmentation

Full stateful firewall

Advanced networking

License-free SD-WAN

WireGuard, L2TP a OpenVPN server

OpenVPN client

OpenVPN a IPsec site-to-site VPN

One-click Teleport and Identity VPN

Policy-based WAN a VPN routing

DHCP relay

Customizable DHCP server

IGMP proxy

IPv6 ISP support

LEDs

Ethernet White: link/activity

Application Requirements

Mobile app UniFi iOS™: Version 10.12.0 and later

UniFi Android™: verze 10.11.2 a later
