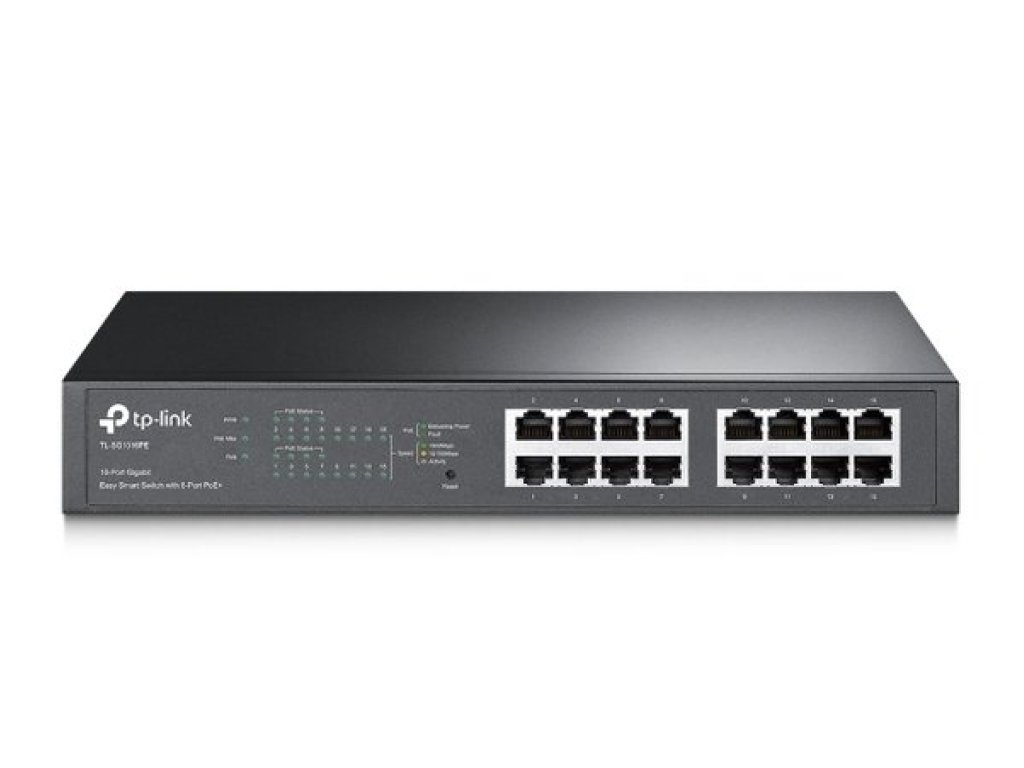

TP-LINK TL-SG1016PE PoE switch

TL-SG1016PE
*16-Port Gigabit Desktop/Rackmount PoE+ Easy Smart Switch, 16 Gigabit RJ45 ports including 8 PoE+ ports, 110W PoE Power supply, PoE Managment, MTU/Port/Tag-based VLAN, QoS, IGMP Snooping, Steel case



Inteligentní switch se 16 gigabitovými porty PoE, 8 portu podporuje PoE+ TL-SG1016PE

*16 portu RJ45 s rychlostmi 10/100/1000 Mb/s
*8 portu podporuje PoE+ pro prenos dat a napájení pres jeden kabel
*Funguje se zarízeními, která splnují normu IEEE 802.3af/at a pomáhá pri rozširování domácích a kancelárských sítí
*Pripojení ve stylu „plug-and-play“ a snadné nastavení síte
*Konfiguraci usnadnuje webové uživatelské rozhraní a utilita pro správu


*HARDWARE FEATURES
Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface: 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity: Fanless
Power Supply: 100-240VAC, 50/60Hz
Power Consumption: Maximum: 124.4W (220V/50Hz)
PoE Ports (RJ45): Standard: 802.3 at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 110W
Dimensions ( W x D x H ): 11.6*7.1*1.7 in. (294*180*44 mm)

*PERFORMANCE
Switching Capacity: 32Gbps
Packet Forwarding Rate: 23.8Mbps
MAC Address Table: 8K
Packet Buffer Memory: 4.1Mbit
Jumbo Frame: 9KB

*SOFTWARE FEATURES
Quality of Service: Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features: IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN: Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management: Web-based GUI
Easy Smart Configuration Utility
Transmission Method: Store-And-Forward

*OTHERS
Certification: FCC, CE, RoHS
Package Contents: TL-SG1016PE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
System Requirements: Microsoft® Windows® for running Utility
Environment: Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
