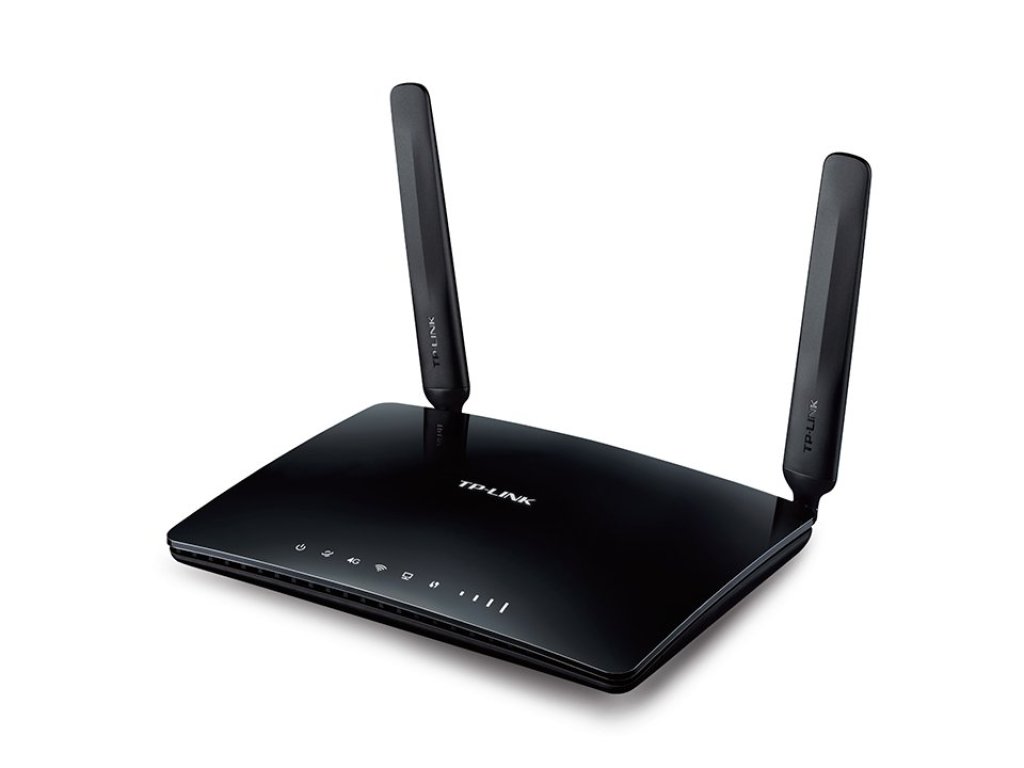

TP-LINK TL-MR6400 4G LTE

OVERVIEW

300Mbit/s bezdrátový N 4G LTE Router: TL-MR6400
*Sdílejte vaši 4G LTE sít multiple Wi-Fi zarízením a užívejte si stahování až 150Mbit/s
*Rychlosti N bezdrátového pripojení až 300Mbit/s
*Integrovaná anténa poskytující stabilní bezdrátové pripojení
*Nepotrebuje žádnou konfiguraci - pouze vložíte SIM kartu, zapnete a užívejte si vysoké rychlosti pripojení k internetu
*Port LAN/WAN poskytuje možnosti a flexibilitu, která vám dovoluje zvolit si vlastní typ pripojení

TECHNICAL SPECS

HARDWARE FEATURES
Interfaces
* 3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port,
* 1 SIM Card Slot

Button
* WPS/Reset Button, Wireless On/Off Button, Power On/Off Button

Dimensions (W X D X H)
* (202 x 141 x 33.6 mm)

External Power Supply
* 12V/1A

Antenna Type
* 2 Internal Wi-Fi Antennas,
* 2 Detachable External 4G LTE Antennas

WIRELESS FEATURES
Wireless Standards
* IEEE 802.11b/g/n 2.4GHz

Frequency
* 2.4GHz

Signal Rate
* 300Mbps at 2.4GHz

Reception Sensitivity
* 11g 54M: -74dBm
* 11n HT20: -71dBm
* 11n HT40: -67dBm

Transmit Power
* CE: <20dBm(2.4GHz)

Wireless Functions
* Enable/Disable Wireless Radio, WDS Bridge, WMM,
* Wireless Statistics

Wireless Security
* 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type
* 4G: FDD-LTE Cat4 (800/900/1800/2100/2600MHz)
* TDD-LTE (2300/2600MHz)
* 3G: DC-HSPA+/HSPA+/HSPA/UMTS (900/2100MHz)
* 2G: EDGE/GPRS/GSM (850/900/1800/1900MHz)

SOFTWARE FEATURES
Quality of Service
* Traffic Control(IP QoS)

Operating Modes
* 3G/4G Router, Wireless Router

Management
* Access Control, Local Management, Remote Management

WAN Connection Type
* Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

DHCP
* Server, Client, DHCP Client List, Address Reservation

Port Forwarding
* Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS
* DynDns, NO-IP

VPN Pass-Through
* PPTP, L2TP, IPSec

Access Control
* Parental Control, Local Management Control, Host List,
* Access Schedule, Rule Management

Firewall Security
* DoS, SPI Firewall, IP Address Filter/Domain Filter,
* IP and MAC Address Binding

Protocols
* Supports IPv4 and IPv6

Guest Network
* 2.4GHz guest network x 1

OTHERS
Certification
* CE, FCC, RoHS

Package Contents
* 300Mbps Wireless N 4G LTE Router, TL-MR6400
* RJ45 Ethernet Cable
* Power Adapter
* Quick Installation Guide
* Micro to Standard SIM Card Adapter
* Nano to Standard SIM Card Adapter

System Requirements
* Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,
* MAC OS, NetWare, UNIX or Linux
* Internet Explorer 11, Firefox 12.0, Chrome 20.0,
* Safari 4.0 browsers or higher, or other Java-enabled browsers
* SIM Card

Environment
* Operating Temperature: 0°C~40°C
* Storage Temperature: -40°C~70°C
* Operating Humidity: 10%~90% non-condensing
* Storage Humidity: 5%~90% non-condensing
