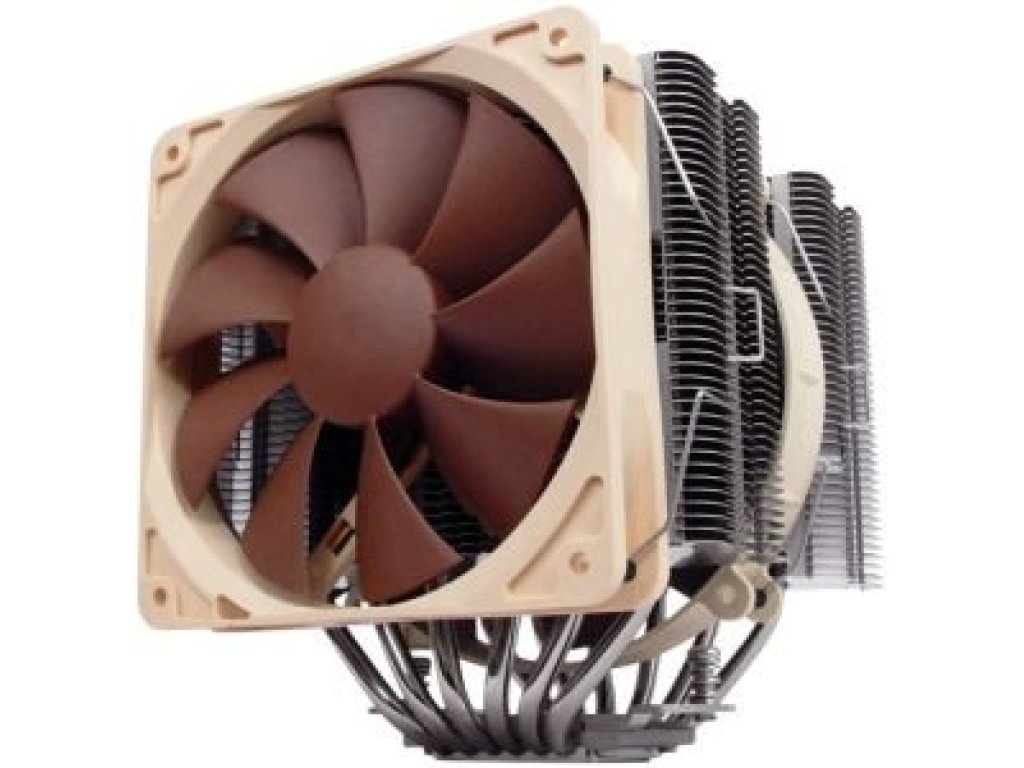

NOCTUA NH-D15

Chladic NH-D15 je vlajková lod rakouského výrobce Noctua na procesory Intel LGA115x (LGA1150, LGA1155, LGA1156), LGA2011 and AMD (AM3(+), AM2(+), FM1, FM2(+)),. Asymetrický design chladice s použitím dvou super tichých vetrácku o prumeru 120mm a 140mm radí tento "state of the art" produkt na absolutní špicku vzuchem chlazených CPU chladicu. Montážní sada SecuFirm2™ pro socket LGA2011.


Kompatibilita: Intel LGA115x (LGA1150, LGA1155, LGA1156), LGA2011 and AMD (AM3(+), AM2(+), FM1, FM2(+)),
Soucásti balení jsou špickový a ultratichý vetrák Noctua NF-A15 140mm s 1200 ot/min. Optimalizovaná geometrie a povrch 9ti lopatek zarucí mimorádný statický tlak pro velmi výkonné chlazení. Díky použití speciálních "Vortex-Control Notches" (zoubkované lopatky) leží frekvence zvuku v oblasti prijemnejšího vnímání (psychoakustika). Innovativní samostabilizující olejové ložisko pro velmi tichý chod a dlouhou životnost! 6 let záruka od výrobce.
Soucásti balení je rovnež velmi ucinná teplovodivá pasta NT-H1.


Built on the basis of the legendary NH-D14 and carrying on its quest for ultimate quiet cooling performance, Noctua’s flagship model NH-D15 is an elite-class dual tower cooler for the highest demands. Its expanded heatpipe layout and two premium grade NF-A15 140mm fans with PWM support for automatic speed control allow it to further improve the NH-D14’s award-winning efficiency. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-D15 forms a complete premium quality solution that represents a deluxe choice for overclockers and silent-enthusiasts alike.

Specifications:
Height (without fan) 165 mm
Width (without fan) 150 mm
Depth (without fan) 135 mm
Height (with fan) 165 mm
Width (with fan) 150 mm
Depth (with fan) 161 mm
Weight (without fan) 1000 g
Weight (with fan) 1320 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Fan compatibility 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

Scope of Delivery •2x NF-A15 PWM premium fan
•2x Low-Noise Adaptor (L.N.A.)
•Y-cable
•NT-H1 high-grade thermal compound
•SecuFirm2™ Mounting Kit
•Noctua Metal Case-Badge


Fan specifications:
Model 2x Noctua NF-A15 PWM
Bearing SSO2
Max. Rotational Speed (+/- 10%) 1500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%) 1200 RPM
Min. Rotational Speed (PWM, +/-20%) 300 RPM
Max. Airflow 140,2 m3/h
Max. Airflow with L.N.A. 115,5 m3/h
Max. Acoustical Noise 24,6 dB(A)
Max. Acoustical Noise with L.N.A. 19,2 dB(A)
Input Power 1,56 W
Voltage Range 12 V
MTBF > 150.000 h

Stránky výrobce:
http://www.noctua.at

Stránky o produktu:
http://www.noctua.at/main.php?show=productview&products_id=68&lng=en
