NETGEAR GS105GE

Společnost Netgear poskytuje ucelené řešení pro SMB, která vynikají výkonem a spolehlivostí. Spolu s jednoduchou instalací a správou získáváte špičkové řešení, které má velmi přiznivé náklady na pořízení a provoz.

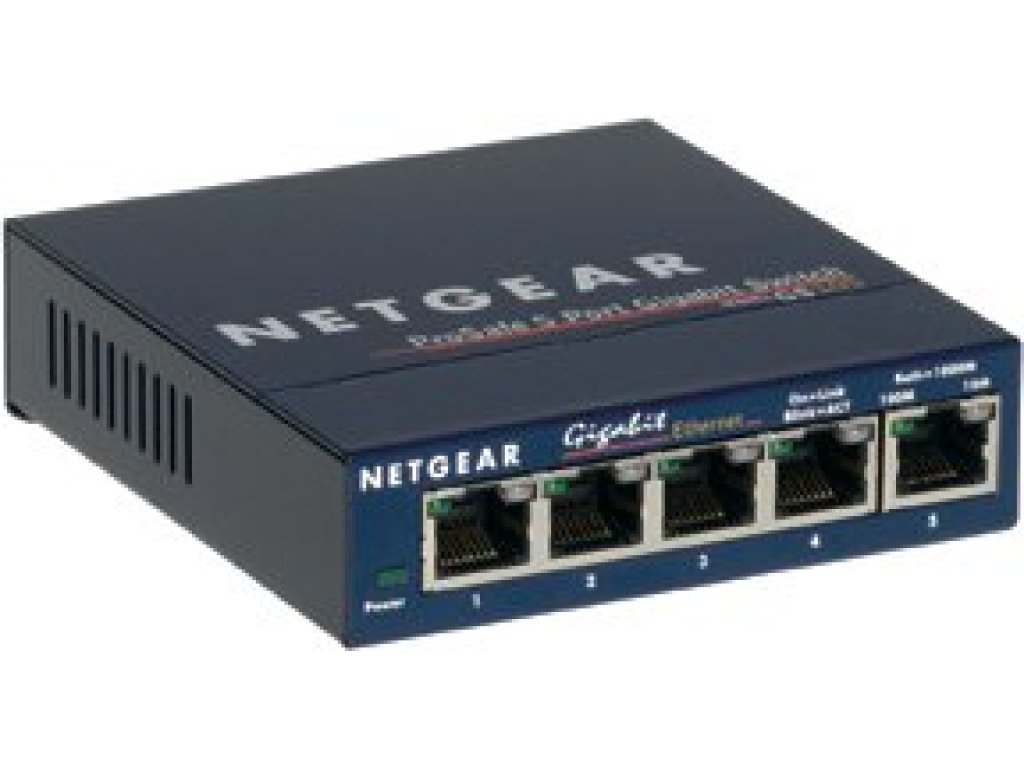

PROSAFE 5 PORT GIGABIT DESKTOP SWITCH

GS105

Provides maximum performance, connecting up to 10x faster than Fast Ethernet

Makes it simple to combine Fast Ethernet and Gigabit devices in your network

Incorporates Plug-and-Play ease of use

Physical Specifications

Dimensions: (w x d x h) 94 x 101 x 27 mm (3.7 x 3.9 x 1.1 in)
Weight: 0.28 kg (0.62 lbs)
Network Ports

5 auto-speed-sensing UTP ports
Forwarding Mode

Store-and-Forward
Performance

Bandwidth: 10 Gbps (non-blocking)
Forward Rate (10 Mbps port): 14,800 packets/sec
Forward Rate (100 Mbps port): 148,000 packets/sec
Forward Rate (1000 Mbps port): 1,480,000 packets/sec
Latency (100 to 100 Mbps): 20 µs (max)
Latency (1000 to 1000 Mbps): 10 µs (max)
Packet Buffer Memory: 128 KB Embedded
MAC address database: 4,000
Status LEDs

Power, Link, speed, and activity indicators built into each RJ-45 port
Power Adapter

12W, 12VDC, 1A
Standards Compliance

IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
Honors IEEE 802.1p and DSCP priority tags
Jumbo Frame Support (9,000)
Safety Agency Approvals for Power Adapter

C-Tick, CE Mark
Emissions

FCC Class A and VCCI Class A
Environmental Specifications

Operating Temperature: 32 to 122o F (0 to 50o C)
Operating Humidity: 10 to 90% noncondensing
Package Contents
––ProSafe 5-port or 8-port Gigabit Desktop Switch 10/100/1000 Mbps (GS105v3 or GS108v3)
––Wall-mount kit
––AC adapter
––Installation guide
––Warranty/support information card
