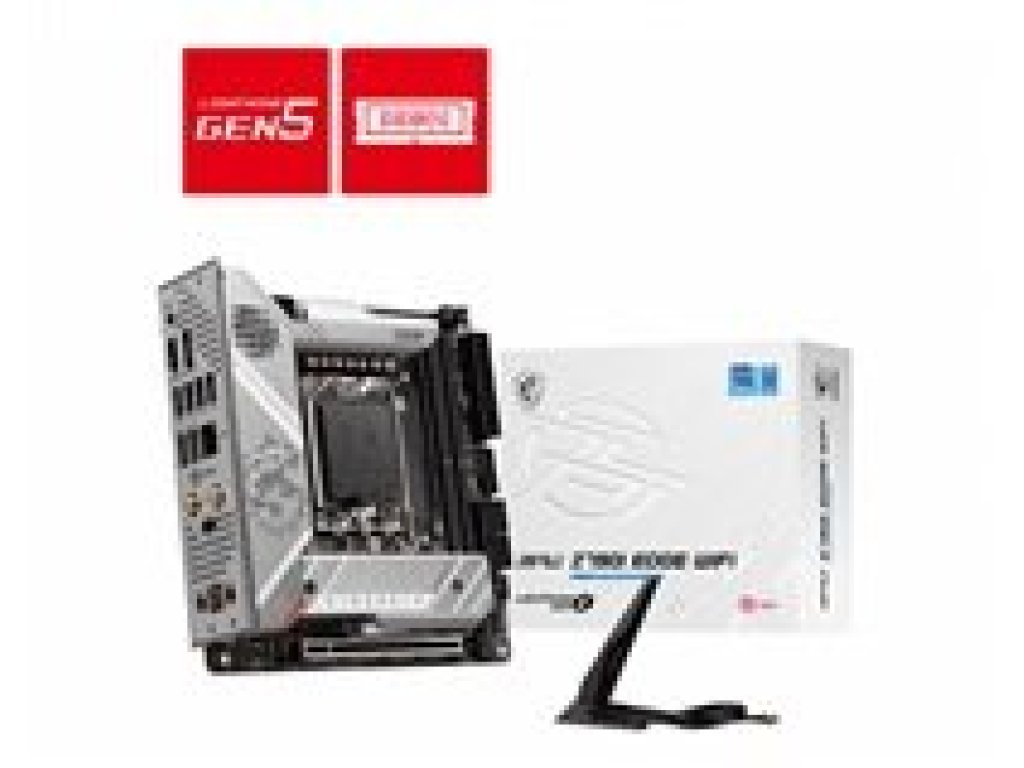

MSI MPG Z790I EDGE WIFI

MPG Z790I EDGE WIFI

• Supports 13th /12th Gen Intel Core™ / Pentium / Celeron processors for LGA 1700 socket

• Supports DDR5 Memory, up to 8000+(OC) MHz

• Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2

• Enhanced Power Design: Direct 10+1+1 phases power, Core Boost, Memory Boost

• Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience

• 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

• High Quality PCB: 12-layer PCB made by server grade level material

• Pre-installed I/O Shield: Better EMI protection and more convenience for installation

CHIPSET

INTEL Z790

CPU SUPPORT

Supports 12th/13th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors
LGA 1700

MEMORY

2x DDR5, Maximum Memory Capacity 64GB
Memory Support 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200 (OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8000+ MHz
• 1DPC 2R Max speed up to 7200+ MHz

Supports Intel XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

ONBOARD GRAPHICS

1x HDMI™
1x DisplayPort
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT

1x PCI-E x16 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)

STORAGE

3x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_2 (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
4x SATA 6G port

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices

LAN

Intel 2.5Gbps LAN

WIRELESS / BLUETOOTH

Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.2**, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11."

AUDIO

Realtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel

INTERNAL I/O

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
1x System Fan
1x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen 2x2 Type C
LED FEATURE 4x EZ Debug LED

BACK PANEL PORTS

Display Port
2.5G LAN
USB 3.2 Gen 2x2 20Gbps (Type-C)
Audio Connectors
Clear CMOS
HDMI™
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-A)
Wi-Fi / Bluetooth

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit

PCB DIMENSION

Mini-ITX
170mmx170mm
