MIKROTIK (RBwAP2nD)

Overview

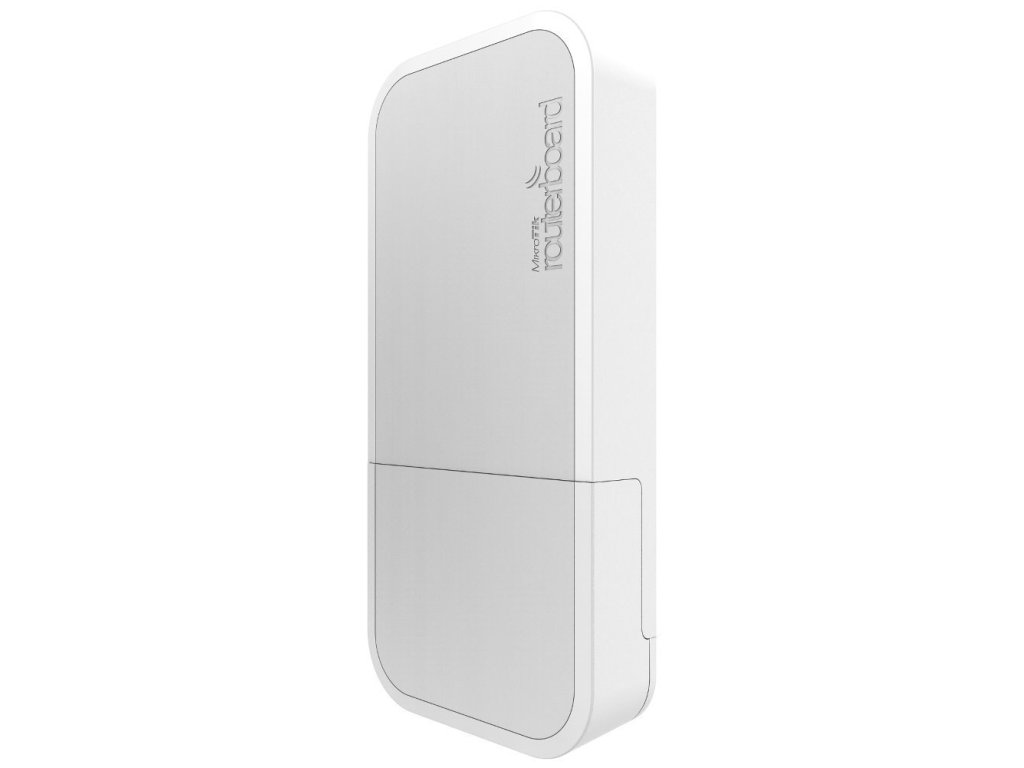

MikroTik RouterBOARD wAP (wall AP) is a small weatherproof wireless access point for your mobile devices, perfect for installation outside your house, in the garden, on your porch or anywhere else where you need wireless access from your phone or computer.
The device has one 10/100 Ethernet port and can be mounted on a wall to provide basic internet access in any location. It looks unobtrusive and sleek, available in two colours - black (RBwAP2nD-BE) and white (RBwAP2nD).
It is waterproof and can be attached to any external wall from the inside of the case - so that it is not easy to detach from it’s mounting location. The bottom door can also be secured with a special screw, which can only be opened by the owner.
It is also possible to run the Ethernet cable directly behind the unit, to inside the wall, there is a special opening on the back of the case. This way, the unit doesn’t attract attention and blends into any environment.

Package Contents

*RBwAP2nD
*K35 screw kit
*wAP mount
*24V 0.38A power adapter
*PoE injector
*Plastic zip tie

Technical Specs

Product code
*RBwAP2nD
CPU nominal frequency
*650 MHz
CPU core count
*1
Size of RAM
*64 MB
10/100 Ethernet ports
*1
10/100/1000 Ethernet ports
*0
MiniPCI slots
*0
MiniPCI-e slots
*0
Wireless standards
*802.11b/g/n
Wireless chip model
*QCA9533-BL3A
Number of USB ports
*0
Power Jack
*1
Supported input voltage
*11 V - 57 V
PoE out
*No
PoE in
*802.3at
Voltage Monitor
*No
CPU temperature monitor
*No
PCB temperature monitor
*No
Operating temperature range
*-40°C to +70°C
License level
*4
Antenna gain DBI
*2
Current Monitor
*No
CPU
*QCA9533-BL3A
Max Power consumption
*4W
SFP ports
*0
SFP+ ports
*0
Number of chains
*2
Serial port
*None
