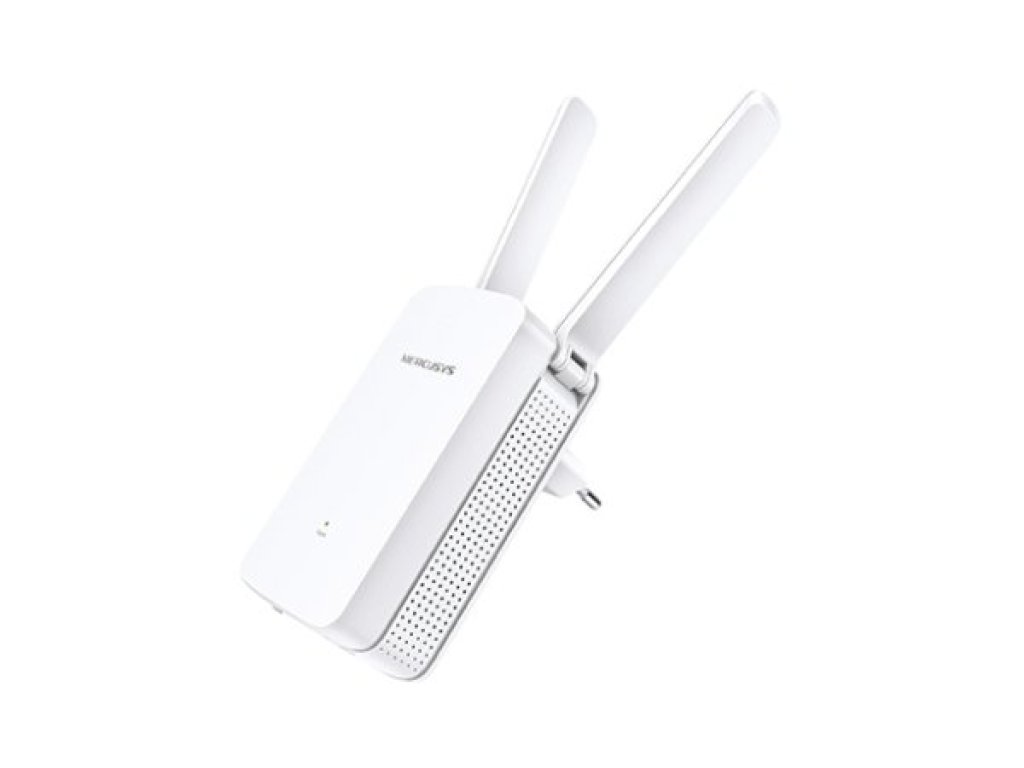

MERCUSYS MW300RE

300Mbps Wi-Fi Range Extender

MW300RE

Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
Two external antennas with MIMO technology help set the MW300RE apart from ordinary range extenders
Easily expand wireless coverage at a push of WPS button
Miniature size and wall-mounted design make it easy to deploy and move flexibly
The multicolor LED helps you to find the right location to deliver the best Wi-Fi extension


Specification:

Dimensions (W X D X H) 99 x 53 x 38mm
Button Reset Button, WPS Button
External Power Supply About 4.3W
Antenna Type 2 external antennas
Wireless Standards IEEE 802.11n/g/b
Frequency 2.4GHz
Signal Rate Up to 300Mbps
Reception Sensitivity
11g 54M: -75dBm

11n HT20 MCS7: -73dBm
11n HT40 MCS7: -70dBm
Certifications CE, ROHS
Package Contents
300Mbps Wi-Fi Range Extender MW300RE
Quick Installation Guide

Environment

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Transmission Power Wireless Security WPA/WPA2, WPA-PSK/WPA2-PSK encryption
Wireless Functions
Wireless MAC Address Filtering
Domain Login Function
Transmit Power Control

Provide Solution for Wi-Fi Dead Zones Elimination

Tired of Wi-Fi dead zones? The MW300RE eliminates them by wirelessly connecting to your router, strengthening and expanding its signal into areas it can’t on its own. It also reduces signal interference to ensure reliable Wi-Fi coverage throughout your home or office.

2.4GHz Wi-Fi
Existing Wi-Fi Coverage
Extended Wi-Fi Coverage

Easy Use Beyond Imagination

Press the WPS button on your router and the MW300RE, respectively, you can connect to the network in seconds. Once connected, you can simply unplug the range extender from one location and plug it back into another for the best signal quality and coverage in your home, without needing to configure the extender again.

Smart Signal Indicator

A multicolor LED helps you to find the right location to deliver the best Wi-Fi extension.

Incredible Capability

MW300RE could work with almost any Wi-Fi router.

MIMO Technology Power Wi-Fi Quality

The MW300RE is different with ordinary range extenders. With MIMO technology, the MW300RE helps to enhance your network by dramatically increasing wireless speeds. What’s more, its three external antennas ensure that a stable wireless signal reaches you where you need it most.
