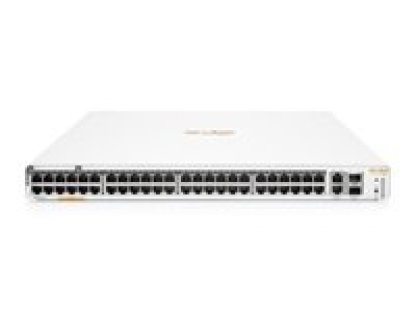

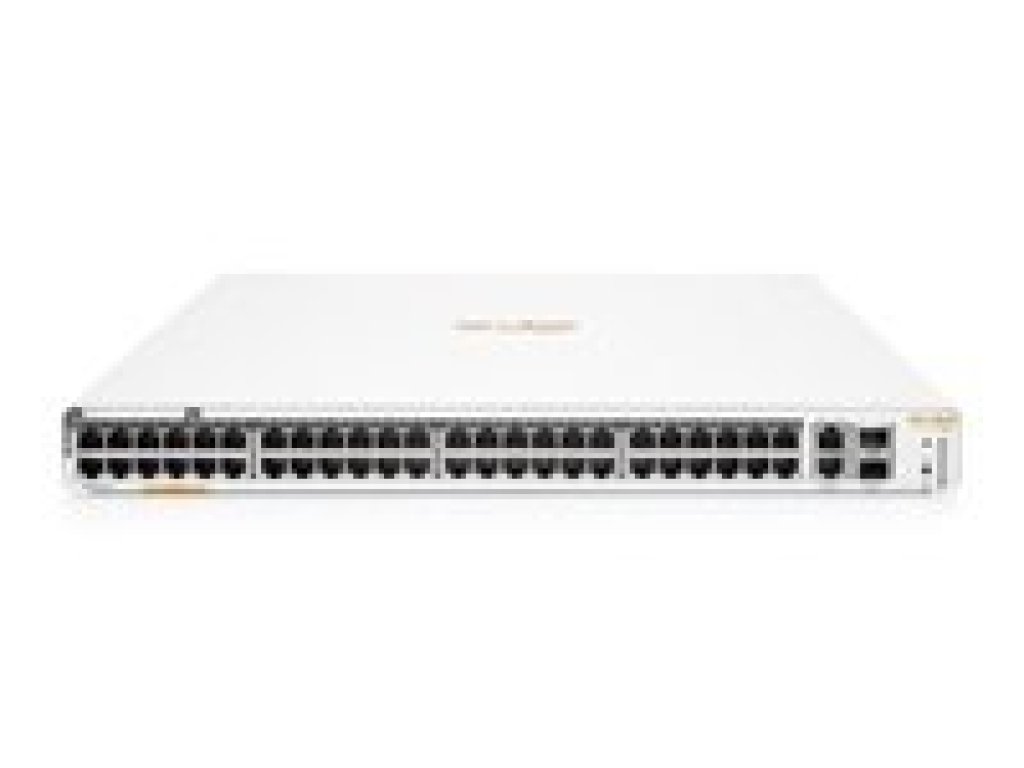

HPE Aruba Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch (JL809A)

I/O ports and slots

12 RJ-45 autosensing 100/1000/10GBASE-T ports

(IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.an 10GBASE-T); Duplex: 100BASE-TX: half or full; 1000BASE-T: full only 10GBASE-T: full only

4 SFP+ 10GbE ports

Dimensions

350.5(d) x 442.5(w) x 43.95(h) mm

Weight

9.6 lb (4.3 kg)

CPU

Single Core ARMv7 Cortex-A9 @2Ghz

100 Mb Latency

< 7.4 uSec

1000 Mb Latency

< 4.2 uSec

10000 Mb Latency

< 1.1 uSec

Throughput (Mpps)

238 Mpps

Capacity

320 Gbps

Routing Table size (# of static entries)

512 IPv4/IPv6

MAC Address table size (# of entries)

16,000 entries

Reliability MTBF (years)

88.8

Operating temperature

0-40°C, 0-10,000 ft

Operating relative humidity

15% to 95% @ 104°F (40°C) non-condensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C) up to 15000 ft

Nonoperating/Storage relative humidity

15% to 90% @ 149°F (65°C) non-condensing

Altitude

up to 10,000 ft (3 km)

Acoustics¹

LWAd = 4.0 Bel

Notes¹: 1 Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL807A and JL809A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm)

Electrical Characteristics

Frequency

50Hz/60Hz

AC voltage

100-127VAC / 200-240VAC

Current

1.3A/0.4A

Maximum power rating

100-127V: 130W 200-220V: 160W

Idle power

100-127V: 60W 200-220V: 80W

PoE power

-

Power Supply

Internal power supply

Safety

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 1

Emissions

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

Generic

EN 55035, CISPR 35, KN35

EN

EN 55035, CISPR 35

ESD

EN/IEC 61000-4-2

Radiated

EN/IEC 61000-4-3

EFT/Burst

EN/IEC 61000-4-4

Surge

EN/IEC 61000-4-5

Conducted

EN/IEC 61000-4-6

Power frequency magnetic field

EN/IEC 61000-4-8

Voltage dips and interruptions

EN/IEC 61000-4-11

Harmonics

EN/IEC 61000-3-2

Flicker

EN /IEC 61000-3-3

Device Management

Aruba Instant On Cloud; Web browser; SNMP Manager

Mounting Positions and Supported Racking

• Mounts in an EIA-standard 19 in. telco rack or equipment cabinet. 2-post rack kit included

• Supports table-top mounting

• Supports rack-mounting

• Supports wall-mounting with ports facing either up or down

• Supports under-table mounting using the brackets provided

Transceivers

• Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)

• Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)

• Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D)

• Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A)

• Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E)

• Aruba 10G SFP+ to SFP+ 1m DAC (J9281D)

• Aruba 10G SFP+ to SFP+ 3m DAC (J9283D)
