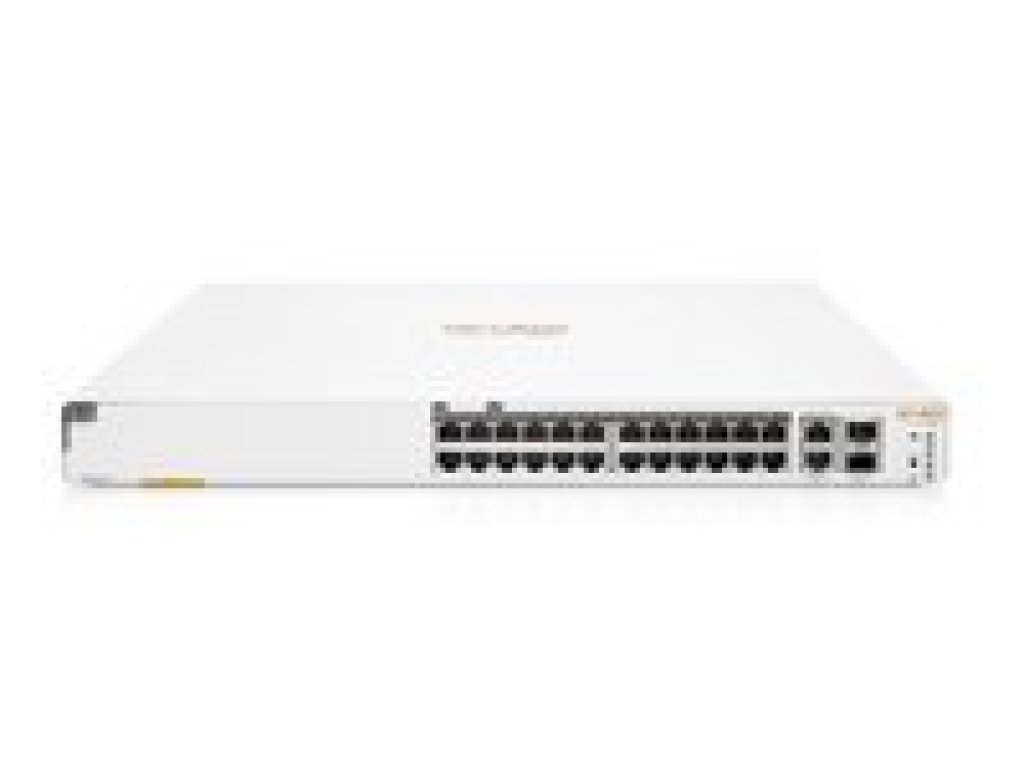

Aruba Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch
I/O ports and slots
24 RJ-45 autosensing 10/100/1000 Mbps ports including 4 CL4 and 20 CL6 PoE ports
IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at Class 4, IEEE 802.3bt Class 6); Duplex: 10BASE-T/100BASE TX: half or full; 1000BASE-T: full only
2 SFP+ 10GbE ports 2 10GBASE-T ports
Dimensions
350.5(d) x 442.5(w) x 43.95(h) mm
Weight
10.4 lb (4.7 kg)
CPU
Single-Core ARM v7 Cortex-A9 @800MHz
100 Mb Latency
< 4.4 uSec
1000 Mb Latency
< 2.2 uSec
10000 Mb Latency
< 1.1 uSec
Throughput (Mpps)
95 Mpps
Capacity
128 Gbps
Routing Table size (# of static entries)
32 IPv4/IPv6
MAC Address table size (# of entries)
16,000 entries
Reliability MTBF (years)
65.3
Operating temperature
0-40°C, 0-10,000 ft
Operating relative humidity
15% to 95% @ 104°F (40°C) non-condensing
Nonoperating/Storage temperature
-40°F to 158°F (-40°C to 70°C) up to 15000 ft
Nonoperating/Storage relative humidity
15% to 90% @ 149°F (65°C) non-condensing
Altitude
up to 10,000 ft (3 km)
Acoustics1
LWAd = 3.5 Bel
Notes1: 1 Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL807A and JL809A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm)
Electrical Characteristics
Frequency
50Hz/60Hz
AC voltage
100-127VAC / 200-240VAC
Current
5.0A/0.4A
Maximum power rating
100-127V: 500W 200-220V: 480W
Idle power
100-127V: 40W 200-220V: 80W
PoE power
Total 370 W PoE Power (Up to 240 W of Class 6 or 370 W of Class 4 PoE)
Power Supply
Internal power supply
Safety
EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
EN/IEC 62368-1, 2nd. & 3rd. Ed.
UL 62368-1, 2nd. & 3rd. Ed.
CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.
EN/IEC 60825-1:2014 Class 3
Emissions
EN 55032:2015/CISPR 32, Class A
FCC CFR 47 Part 15: 2018 Class A
ICES-003 Class A
VCCI Class A
CNS 13438 Class A
KN 32 Class A
AS/NZS CISPR 32 Class A
Generic
EN 55035, CISPR 35, KN35
EN
EN 55035, CISPR 35
ESD
EN/IEC 61000-4-2
Radiated
EN/IEC 61000-4-3
EFT/Burst
EN/IEC 61000-4-4
Surge
EN/IEC 61000-4-5
Conducted
EN/IEC 61000-4-6
Power frequency magnetic field
EN/IEC 61000-4-8
Voltage dips and interruptions
EN/IEC 61000-4-11
Harmonics
EN/IEC 61000-3-2
Flicker
EN /IEC 61000-3-3
Device Management
Aruba Instant On Cloud; Web browser; SNMP Manager
Mounting Positions and Supported Racking
Mounts in an EIA-standard 19 in. telco rack or equipment cabinet. 2-post rack kit included
Supports table-top mounting
Supports rack-mounting
Supports wall-mounting with ports facing either up or down
Supports under-table mounting using the brackets provided
Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)
Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)
Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D)
Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A)
Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E)
Aruba 10G SFP+ to SFP+ 1m DAC (J9281D)
Aruba 10G SFP+ to SFP+ 3m DAC (J9283D)
Aruba Instant On 1960 12XGT 4SFP+ Switch (JL805A) | |
I/O ports and slots | |
| 12 RJ-45 autosensing 100/1000/10GBASE-T ports (IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.an 10GBASE-T); Duplex: 100BASE-TX: half or full; 1000BASE-T: full only 10GBASE-T: full only 4 SFP+ 10GbE ports |
Dimensions | 350.5(d) x 442.5(w) x 43.95(h) mm |
Weight | 9.6 lb (4.3 kg) |
CPU | Single Core ARMv7 Cortex-A9 @2Ghz |
100 Mb Latency | < 7.4 uSec |
1000 Mb Latency | < 4.2 uSec |
10000 Mb Latency | < 1.1 uSec |
Throughput (Mpps) | 238 Mpps |
Capacity | 320 Gbps |
Routing Table size (# of static entries) | 512 IPv4/IPv6 |
MAC Address table size (# of entries) | 16,000 entries |
Reliability MTBF (years) | 88.8 |
Operating temperature | 0-40°C, 0-10,000 ft |
Operating relative humidity | 15% to 95% @ 104°F (40°C) non-condensing |
Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) up to 15000 ft |
Nonoperating/Storage relative humidity | 15% to 90% @ 149°F (65°C) non-condensing |
Altitude | up to 10,000 ft (3 km) |
Acoustics1 | LWAd = 4.0 Bel |
Notes1: 1 Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL807A and JL809A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm) | |
Electrical Characteristics | |
Frequency | 50Hz/60Hz |
AC voltage | 100-127VAC / 200-240VAC |
Current | 1.3A/0.4A |
Maximum power rating | 100-127V: 130W 200-220V: 160W |
Idle power | 100-127V: 60W 200-220V: 80W |
PoE power | - |
Power Supply | Internal power supply |
Safety | EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 |
Emissions | EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A |
Generic | EN 55035, CISPR 35, KN35 |
EN | EN 55035, CISPR 35 |
ESD | EN/IEC 61000-4-2 |
Radiated | EN/IEC 61000-4-3 |
EFT/Burst | EN/IEC 61000-4-4 |
Surge | EN/IEC 61000-4-5 |
Conducted | EN/IEC 61000-4-6 |
Power frequency magnetic field | EN/IEC 61000-4-8 |
Voltage dips and interruptions | EN/IEC 61000-4-11 |
Harmonics | EN/IEC 61000-3-2 |
Flicker | EN /IEC 61000-3-3 |
Device Management | Aruba Instant On Cloud; Web browser; SNMP Manager |
Mounting Positions and Supported Racking |
|
Transceivers |
|
Aruba Instant On 1960 24G 2XGT 2SFP+ Switch (JL806A) | |
Specifications | |
I/O ports and slots | 24 RJ-45 autosensing 10/100/1000 Mbps ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP+ 10GbE ports 2 10GBASE-T ports |
Dimensions | 350.5(d) x 442.5(w) x 43.95(h) mm |
Weight | 8.7 lb (3.9 kg) |
CPU | Single-Core ARM v7 Cortex-A9 @800MHz |
100 Mb Latency | < 4.4 uSec |
1000 Mb Latency | < 2.2 uSec |
10000 Mb Latency | < 1.1 uSec |
Throughput (Mpps) | 95 Mpps |
Capacity | 128 Gbps |
Routing Table size (# of static entries) | 32 IPv4/IPv6 |
MAC Address table size (# of entries) | 16,000 entries |
Reliability MTBF (years) | 123.0 |
Operating temperature | 0-40°C, 0-10,000 ft |
Operating relative humidity | 15% to 95% @ 104°F (40°C) non-condensing |
Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) up to 15000 ft |
Nonoperating/Storage relative humidity | 15% to 90% @ 149°F (65°C) non-condensing |
Altitude | up to 10,000 ft (3 km) |
Acoustics1 | Fanless |
Notes1: 1 Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL807A and JL809A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm) | |
Electrical Characteristics | |
Frequency | 50Hz/60Hz |
AC voltage | 100-127VAC / 200-240VAC |
Current | 0.6A/0.2A |
Maximum power rating | 100-127V: 60W 200-220V: 80W |
Idle power | 100-127V: 30W 200-220V: 40W |
PoE power | - |
Power Supply | Internal power supply |
Safety | EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 2 |
Emissions | EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A |
Generic | EN 55035, CISPR 35, KN35 |
EN | EN 55035, CISPR 35 |
ESD | EN/IEC 61000-4-2 |
Radiated | EN/IEC 61000-4-3 |
EFT/Burst | EN/IEC 61000-4-4 |
Surge | EN/IEC 61000-4-5 |
Conducted | EN/IEC 61000-4-6 |
Power frequency magnetic field | EN/IEC 61000-4-8 |
Voltage dips and interruptions | EN/IEC 61000-4-11 |
Harmonics | EN/IEC 61000-3-2 |
Flicker | EN /IEC 61000-3-3 |
Device Management | Aruba Instant On Cloud; Web browser; SNMP Manager |
Mounting Positions and Supported Racking |
|
Transceivers |
|
Aruba Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Switch (JL807A) | |
Specifications | |
I/O ports and slots | 24 RJ-45 autosensing 10/100/1000 Mbps ports including 4 CL4 and 20 CL6 PoE ports IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at Class 4, IEEE 802.3bt Class 6); Duplex: 10BASE-T/100BASE TX: half or full; 1000BASE-T: full only 2 SFP+ 10GbE ports 2 10GBASE-T ports |
Dimensions | 350.5(d) x 442.5(w) x 43.95(h) mm |
Weight | 10.4 lb (4.7 kg) |
CPU | |
| Kód produktu | AX77622 |
|---|---|
| MPN kód | JL807A |
| EAN | 190017521589 |
| Značka | HPE |
| Záruka | 60 měsíců |
