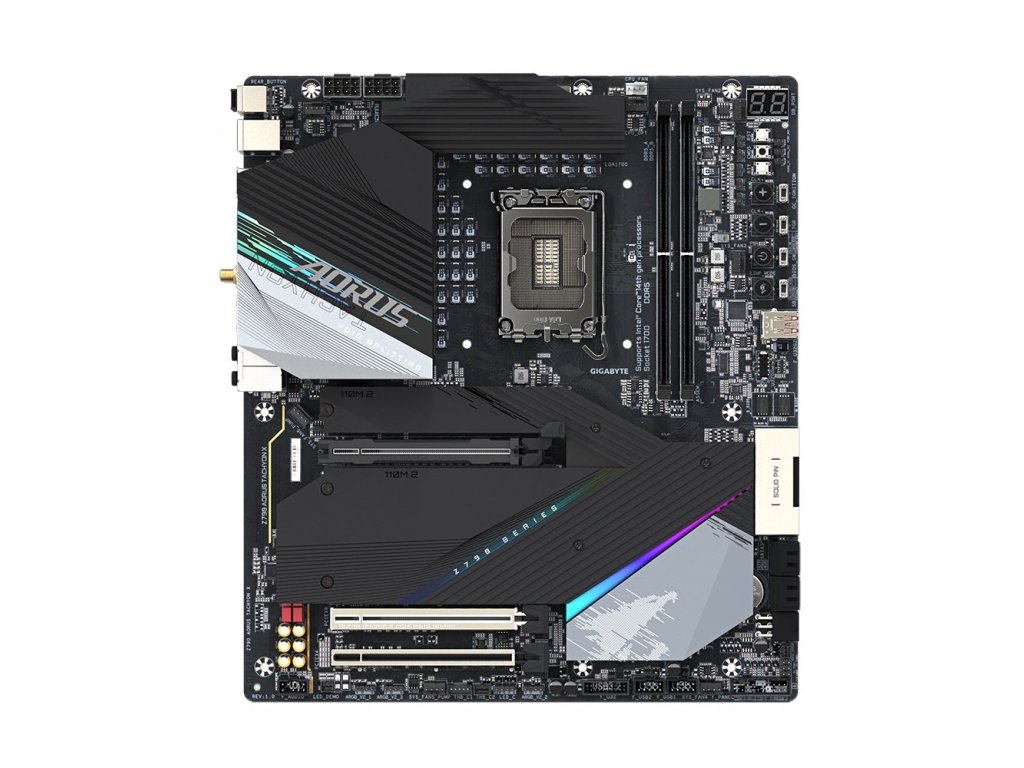

GIGABYTE Z790 AORUS TACHYON

Z790 AORUS TACHYON

Intel Socket LGA 1700:Support 13th and 12th Gen Series Processors
Unparalleled Performance:Direct 15+1+2 Phases Digital VRM Solution
Dual Channel DDR5:2*SMD DIMMs with XMP 3.0 Memory Module Support
Next Generation Storage:4*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard :To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch:PCIe x16 Slot with Quick Release & Screwless Design
Hi-Fi Audio with DTS:X Ultra:ALC1220 CODEC and WIMA Audio Capacitors
Fast Networks:Intel 2.5GbE LAN & Intel Wi-Fi 6E 802.11ax
Extended Connectivity:Dual USB-C 20Gb/s, HDMI
Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
Exclusive onboard Overclocking Kit for Extreme Overclocking
Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

CPU
LGA1700 socket: Support for the 13th and 12thGeneration Intel Core™, Pentium Gold and Celeron Processors*L3 cache varies with CPU* Please refer to "CPU Support List" for more information.
Chipset
Intel Z790 Express Chipset
Memory
Support for DDR5 8333(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules2 x DDR5 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.0 version and HDCP 2.3.(Graphics specifications may vary depending on CPU support.)
Audio
Realtek ALC1220-VB CODEC* The back panel line out jack supports DSD audio.Support for DTS:X UltraHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out
LAN
Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel Wi-Fi 6E AX210WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
CPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8)* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.Chipset:1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Storage Interface
CPU:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel2 x USB 3.2 Gen 1 ports available through the internal USB header4 x USB 2.0/1.1 ports available through the internal USB headersASMedia USB 3.2 Gen 2 Controller:1 x USB 3.2 Gen 2 Type-A port (red) on the back panelChipset+USB 3.2 Gen 1 Hub:4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors
1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x 6-pin OC_PEG power connector1 x CPU fan header1 x CPU fan/water cooling pump header4 x system fan headers2 x system fan/water cooling pump headers2 x addressable LED strip headers2 x RGB LED strip headers4 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C header, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 2 Type-A port (red)1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x noise detection header2 x Thunderbolt™ add-in card connectors2 x temperature sensor headersVoltage Measurement Points1 x Clear CMOS jumper1 x power button (PWR)1 x reset button (RST)1 x Clear CMOS button (CMOS)1 x Cold Reset button (RTY)1 x Protection Mode button (LIMP_MODE)1 x CPU Ratio up button (CLK+)1 x CPU Ratio down button (CLK-)2 x BIOS switches (BIOS_SW/SB)1 x OC Trigger switch (TGR)1 x OC Ignition switch (OC_IGNITION)
Back Panel Connectors
1 x Q-Flash Plus button1 x Protection Mode button1 x PS/2 keyboard port1 x PS/2 mouse port2 x SMA antenna connectors (2T2R)1 x HDMI port1 x USB Type-C port, with USB 3.2 Gen 2x2 support3 x USB 3.2 Gen 2 Type-A ports (red)4 x USB 3.2 Gen 1 ports1 x RJ-45 port1 x optical S/PDIF Out connector5 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.Noise detection
BIOS
2 x 256 Mbit flashUse of licensed AMI UEFI BIOSSupport for DualBIOS™PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup
Bundled Software
Norton Internet Security (OEM version)LAN bandwidth management software
Operating System
Support for Windows 11 64-bitSupport for Windows 10 64-bit
Form Factor
E-ATX Form Factor; 30.5cm x 27.0cm
