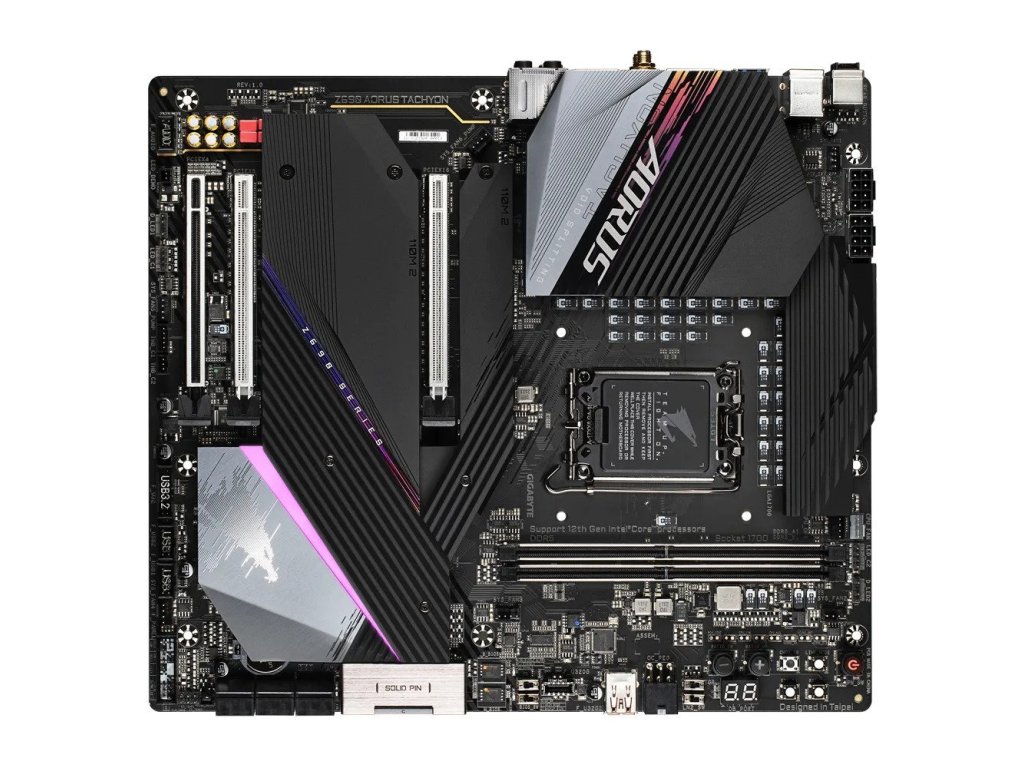

GIGABYTE Z690 AORUS TACHYON rev. 1.0

Chipset: Intel Z690 Express Chipset

Rozmerový formát: E-ATX Form Factor; (30.5cm x 27.0cm)
Podpora pro procesory: 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors
Patice procesoru: LGA 1700

Pozice na pameti: 2 x DDR5 DIMM, Dual channel memory architecture
Podpora pro pameti: DDR5 7000(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
Max.velikost operacní pameti: 64 GB
Podpora pro pameti typu: ECC, XMP

Grafická karta: Intel HD Graphics
*1 x HDMI port - 4096x2160@60 Hz

Zvuková karta: Realtek ALC1220-VB CODEC
*2/4/5.1/7.1-channel
*Podpora S/PDIF Out

Sítová karta:
*Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
*Intel Wi-Fi 6E AX210 - WIFI a, b, g, n, ac, ax
*Bluetooth 5.2

Rozširující sloty:
*1 x PCI Express x16 slot, running at x16 (PCI Express 5.0 standard)
*1 x PCI Express x16 slot, running at x8 (PCI Express 5.0 standard)
*1 x PCI Express x16 slot, running at x4 (PCI Express 3.0 standard)

RAID radic: RAID 0, RAID 1, RAID 5, and RAID 10

SATA: 6 x SATA 6Gb/s connectors

M.2: 4 x M.2 Socket 3 connectors

USB:
*Interní:
*1 x USB Type-C header, with USB 3.2 Gen 2x2 support
*1 x USB 3.2 Gen 2 Type-A port (red)
*1 x USB 3.2 Gen 1 header
*2 x USB 2.0/1.1 headers
*Externí:
*1 x USB Type-C port, with USB 3.2 Gen 2x2 support
*3 x USB 3.2 Gen 2 Type-A ports (red)
*4 x USB 3.2 Gen 1 ports


Interní porty:
*1 x 24-pin ATX main power connector
*2 x 8-pin ATX 12V power connectors
*1 x 6-pin OC_PEG power connector
*1 x CPU fan header
*1 x water cooling CPU fan header
*4 x system fan headers
*2 x system fan/water cooling pump headers
*2 x addressable LED strip headers
*2 x RGB LED strip headers
*4 x M.2 Socket 3 connectors
*6 x SATA 6Gb/s connectors
*1 x front panel header
*1 x front panel audio header
*1 x USB Type-C header, with USB 3.2 Gen 2x2 support
*1 x USB 3.2 Gen 2 Type-A port (red)
*1 x USB 3.2 Gen 1 header
*2 x USB 2.0/1.1 headers
*1 x noise detection header
*2 x Thunderbolt add-in card connectors
*2 x temperature sensor headers
*Voltage Measurement Points
*1 x Clear CMOS jumper
*1 x power button (PW_SW)
*1 x reset button (RST_SW)
*1 x Clear CMOS button (CMOS_SW)
*1 x Cold Reset button (RTY_SW)
*1 x Protection Mode button (LIMP_MODE)
*2 x BIOS switches (BIOS_SW/SB)
*1 x CPU Ratio up button (RATIO_UP)
*1 x CPU Ratio down button (RATIO_DW)
*1 x OC Trigger switch (TGR)
*1 x Reserved switch (RSV_SW)

Externí porty:
*1 x Q-Flash Plus button
*1 x OC Ignition button
*1 x PS/2 keyboard port
*1 x PS/2 mouse port
*2 x SMA antenna connectors (2T2R)
*1 x HDMI port
*1 x USB Type-C port, with USB 3.2 Gen 2x2 support
*3 x USB 3.2 Gen 2 Type-A ports (red)
*4 x USB 3.2 Gen 1 ports
*1 x RJ-45 port
*1 x optical S/PDIF Out connector
*5 x audio jacks

BIOS: AMI UEFI BIOS, 2 x 256 Mbit flash

Stránka výrobce: http://www.gigabyte.com/Motherboard/Z690-AORUS-TACHYON-rev-10#kf
