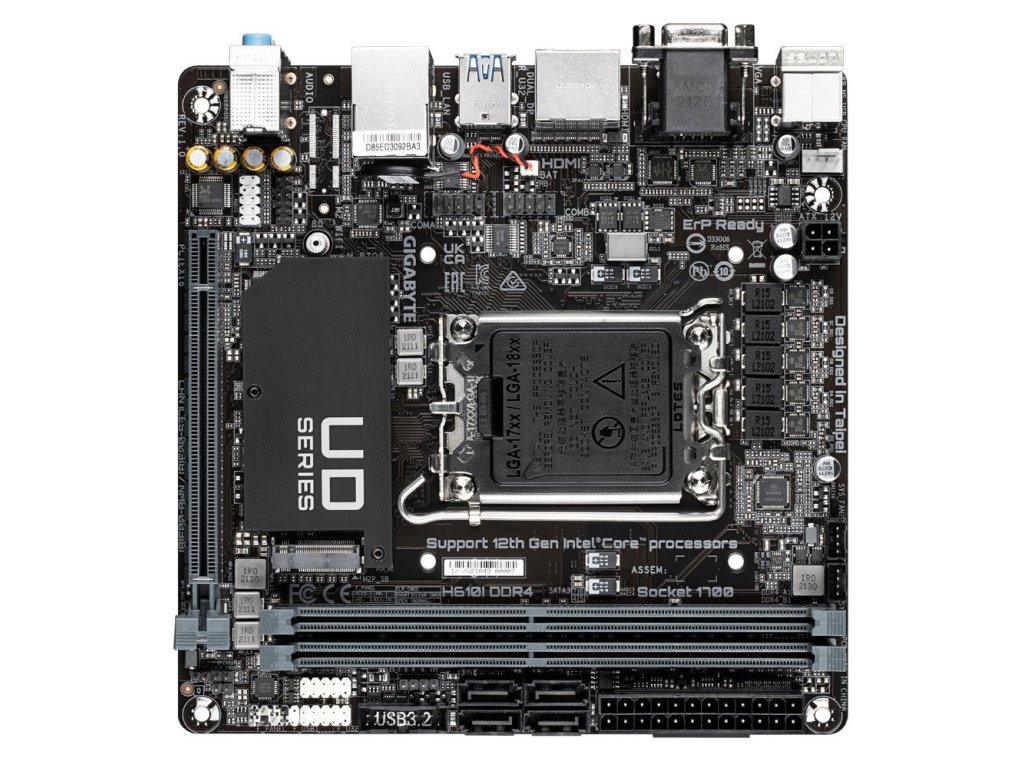

GIGABYTE H610I DDR4 rev. 1.0

Chipset: Intel H610 Express Chipset

Rozmerový formát: Mini-ITX (17.0cm x 17.0cm)
Podpora pro procesory: 12th Generation Intel Core, Pentium Gold and Celeron Processors
Patice procesoru: LGA 1700

Pozice na pameti: 2 x DDR4 DIMM, Dual channel memory architecture
Podpora pro pameti: DDR4 3200/3000/2933/2666/2400/2133 MHz
Max.velikost operacní pameti: 64 GB
Podpora pro pameti typu: ECC, XMP

Grafická karta: (Intel HD Graphics)
*1 x D-Sub port - 1920x1200@60 Hz
*1 x HDMI 2.1 port - 4096x2160@60 Hz
*2 x DisplayPort 1.2 - 4096x2304@60 Hz

Zvuková karta: Realtek Audio CODEC
*2/4/5.1/7.1-channel

Sítová karta: Intel GbE LAN chip (1 Gbps/100 Mbps)

Rozširující sloty: 1 x PCI Express x16 slot, running at x16 (PCI Express 4.0 standard)

SATA: 4 x SATA 6Gb/s connectors

M.2: 1 x M.2 connector

USB:
*Interní:
*1 x USB 3.2 Gen 1 header
*2 x USB 2.0/1.1 headers
*Externí:
*2 x USB 3.2 Gen 1 ports
*4 x USB 2.0/1.1 ports

Interní porty:
*1 x 24-pin ATX main power connector
*1 x 4-pin ATX 12V power connector
*1 x CPU fan header
*2 x system fan headers
*1 x RGB LED strip header
*1 x M.2 Socket 3 connector
*4 x SATA 6Gb/s connectors
*1 x front panel header
*1 x front panel audio header
*1 x USB 3.2 Gen 1 header
*2 x USB 2.0/1.1 headers
*1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
*2 x serial port headers
*1 x Clear CMOS jumpe
*1 x chassis intrusion header

Externí porty:
*1 x PS/2 keyboard/mouse port
*2 x USB 3.2 Gen 1 ports
*4 x USB 2.0/1.1 ports
*1 x D-Sub port
*2 x DisplayPorts
*1 x HDMI 2.0 port
*1 x RJ-45 port
*3 x audio jacks

BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash

Stránka výrobce: http://www.gigabyte.com/Motherboard/H610I-DDR4-rev-10#kf
