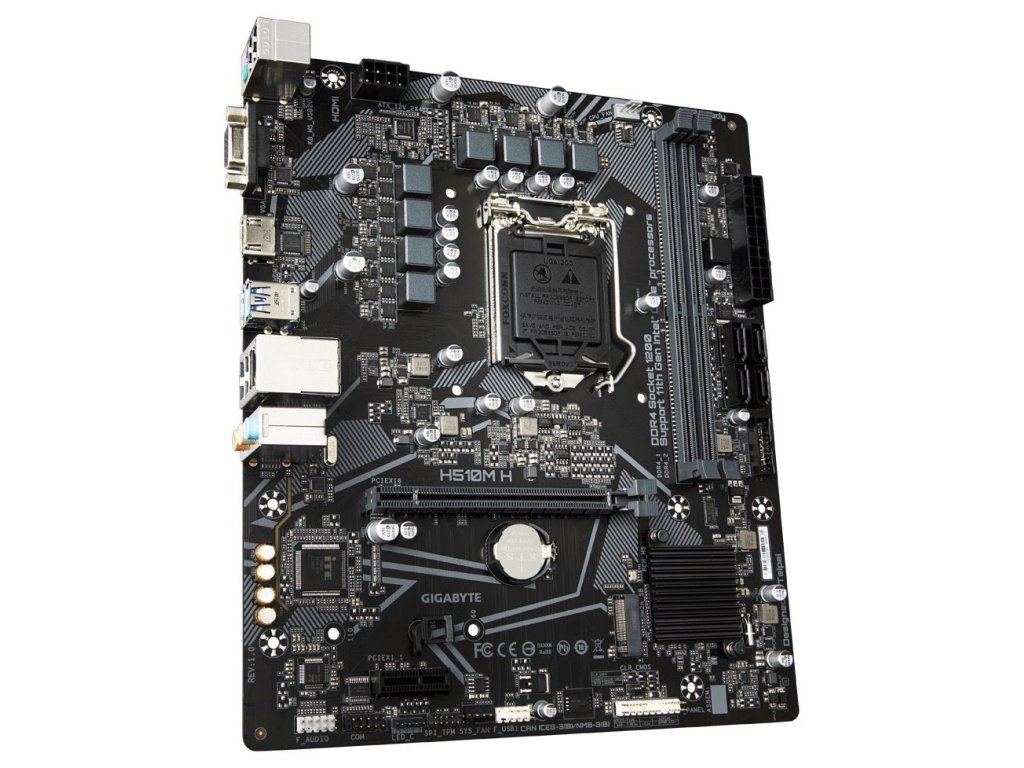

GIGABYTE H510M H (H510M H)

Chipset: Intel® H510 Express Chipset

Rozmerový formát: Micro ATX Form Factor (244 mm x 210 mm)
Podpora pro procesory: 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors + 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors
Patice procesoru: LGA 1200

Pozice na pameti: 2x DDR4 DIMM
Podpora pro pameti:
*11th Generation Intel® Core™ i9/i7/i5 processors:
*Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
*10th Generation Intel® Core™ i9/i7 processors:
*Support for DDR4 2933/2666/2400/2133 MHz memory modules
*10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
*Support for DDR4 2666/2400/2133 MHz memory modules
Max.velikost operacní pameti: 64 GB
Podpora pro pameti typu: DDR4
*Dvoukanálová architektura pameti
*Podpora pametových modulu ECC Un-buffered DIMM 1Rx8/2Rx8 (pracuje jako non-ECC mode)
*Podpora pametových modulu non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
*Podpora pametových modulu s XMP profilem (Extreme Memory Profile)

Grafická karta: Integrovaná v závislosti na CPU

Zvuková karta:
*Realtek® Audio CODEC

Sítová karta:
*Realtek® GbE LAN chip (1 Gbit/100 Mbit)

Rozširující sloty:
*1x PCI Express x16 slot, running at x16 (PCIEX16)
*1x PCI Express x1 slot (PCIEX1_1)

SATA:
*4x konektor SATA 6 Gb/s

M.2:
*1x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

USB:
*zadní USB porty (celkem 6)
*2x USB 3.2 Gen 1 ports
*4x USB 2.0/1.1 ports
*prední USB porty (celkem 4)
*2x USB 3.2 Gen 1 ports
*2x USB 2.0/1.1 ports

Interní porty:
*1x 24-pin ATX main power connector
*1x 8-pin ATX 12V power connector
*1x CPU fan header
*1x system fan header
*1x RGB LED strip header
*1x M.2 Socket 3 connector
*4x SATA 6Gb/s connectors
*1x front panel header
*1x front panel audio header
*1x USB 3.2 Gen 1 header
*1x USB 2.0/1.1 header
*1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
*1x serial port header
*1x Clear CMOS jumper

Externí porty:
*1x PS/2 keyboard/mouse port
*1x D-Sub port
*1x HDMI port
*2x USB 3.2 Gen 1 ports
*4x USB 2.0/1.1 ports
*1x RJ-45 port
*3x audio jacks

BIOS: 1x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Stránka výrobce: https://www.gigabyte.com/Motherboard/H510M-H-rev-10
