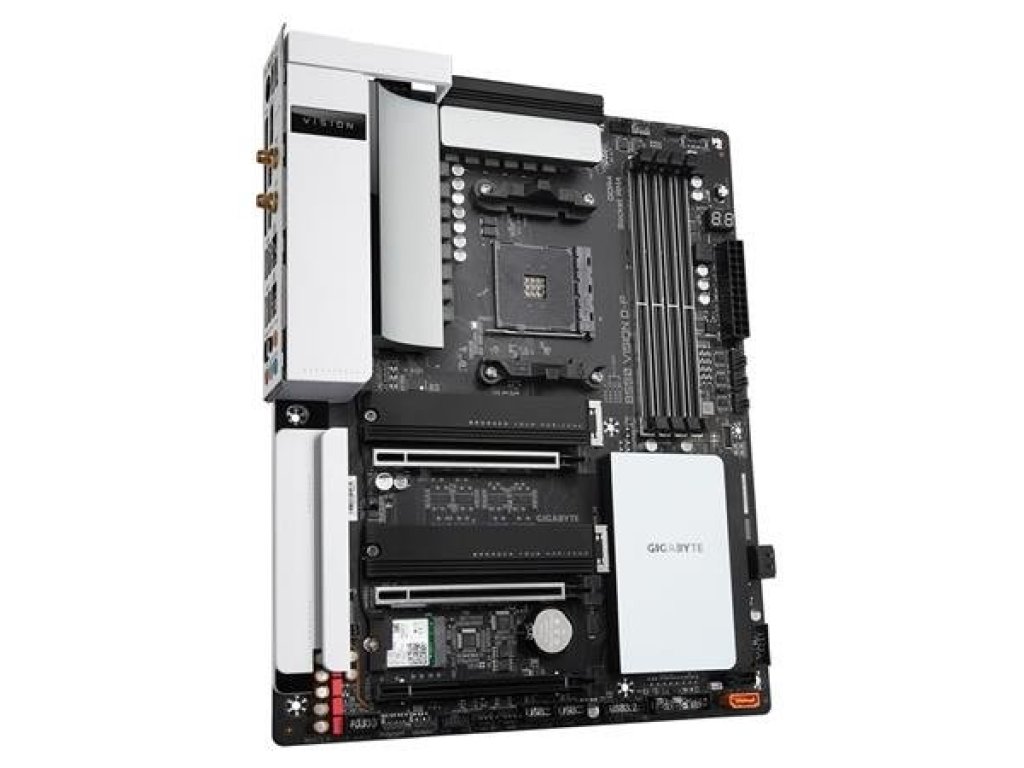

GIGABYTE B550 VISION D-P

Chipset: AMD B550

Rozmerový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory: AMD Ryzen™ 5000 Series / 3rd Generation AMD Ryzen™ processors / 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
Patice procesoru: AM4

Pozice na pameti: 4x DDR4 DIMM
Podpora pro pameti:

AMD Ryzen™ 5000 series processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
3rd Gen AMD Ryzen™ Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
Max.velikost operacní pameti: 128 GB
Podpora pro pameti typu: DDR4

Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Grafická karta:

Integrated Graphics Processor (na základe procesoru)
Multi GPU: AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Zvuková karta:

Realtek® ALC1220-VB codec
Sítová karta:

Intel® 2.5GbE LAN chip (2.5 Gbit/1000 Mbit/100 Mbit) (LAN1)
Realtek® 2.5GbE LAN chip (2.5 Gbit/1000 Mbit/100 Mbit) (LAN2)
Intel® Wi-Fi 6 AX200
Bluetooth 5
Rozširující sloty:

1x PCI Express x16 slot (PCIEX16)
1x PCI Express x16 slot (PCIEX8)
1x PCI Express x16 slot (PCIEX4)
RAID radic: 0, 1, 10

SATA:

4x SATA 6Gb/s
M.2:

1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110
1x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110
USB:

zadní USB porty ( celkem 9 )
3x USB 3.2 Gen 1 ports
2x USB 3.2 Gen 2 Type-A port
2x USB Type-C™ ports
2x USB 2.0/1.1 ports
prední USB porty ( celkem 7 )
1x USB Type-C™ port with USB 3.2 Gen 1
2x USB 3.2 Gen 1 ports
4x USB 2.0/1.1 ports
Interní porty:

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x CPU fan header
1x water cooling CPU fan header
4x system fan headers
2x system fan/water cooling pump headers
2x addressable LED strip headers
2x RGB LED strip headers
1x CPU cooler LED strip/RGB LED strip header
2x M.2 Socket 3 connectors
4x SATA 6Gb/s connectors
1x SATA DOM power connector
1x front panel header
1x front panel audio header
1x USB Type-C™ port, with USB 3.2 Gen 1 support
1x USB 3.2 Gen 1 header
2x USB 2.0/1.1 headers
1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1x serial port header
1x Clear CMOS jumper
2x temperature sensor headers
1x Q-Flash Plus button
Externí porty:

1x PS/2 keyboard/mouse port
1x DisplayPort In port
1x HDMI port
2x SMA antenna connectors (2T2R)
2x USB 3.2 Gen 2 Type-A ports (red)
2x Thunderbolt™ 3 connectors (USB Type-C™ port, with USB 3.2 Gen 2 support)
3x USB 3.2 Gen 1 ports
2x USB 2.0/1.1 ports
2x RJ-45 ports
1x optical S/PDIF Out connector
5x audio jacks

BIOS: 256 Mb AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
