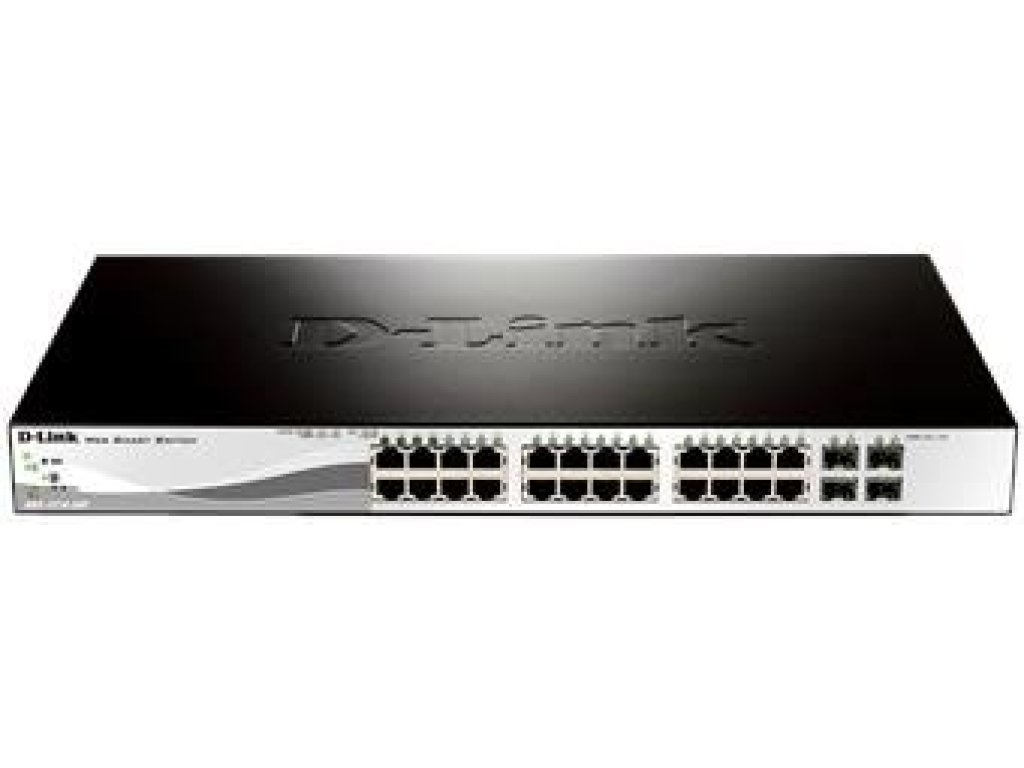

D-Link DGS-1210-28P
28-Port Gigabit PoE Smart+ Switch with 4 SFP ports (24 x PoE ports, smart fans)

OVERVIEW
The DGS-1210 Series Smart+ Switches is the latest generation of D-Link Smart+ Switches featuring D-Link Green 3.0 technology. The series offers a high level of energy saving and efficiency, as it also complies with the IEEE 802.3az Energy Efficient Ethernet standard. IPv6 Ready Logo Program Approved, support for IPv6 management and configurations ensures your network remains protected after the upgrade from IPv4 to IPv6. By offering multiple management options, the Smart+ Switches allows quick deployment, infrastructure expansion, and seamless function upgrades. Built for small and medium-sized businesses, the DGS-1210 Series Smart+ Switches provide functionality, security, and manageability for a fraction of the standard cost of ownership.

The DGS-1210 Series Smart+ Switches includes a range of high power budget PoE-enable switches for businesses looking to power VoIP phones, wireless access points or network cameras. The DGS-1210-10P is a 8-port Smart PoE+ Switch that provides 8 PoE-enabled ports that can supply power of up to 30 W each. Whereas the DGS-1210-28P is a Smart PoE+ Switch with a power budget of 187 W, that provides 24 PoE-enabled ports with ports 1-4 supporting up to 30 W of power output following IEEE 802.3at standard. The design allows more flexibility in power allocation for a variety of powered devices with affordable installation costs.

SPECIFICATIONS
INTERFACE
Number of 10/100/1000BASE-TX ports
• 24 ports

Number of SFP ports
• 4 ports

Maximum Power Budget
• 185W

PERFORMANCE
Switch Capacity
• 56 Gbps

64-Byte Packet Forwarding Rate
• 41.7 Mpps

MAC Address Table Size
• 16K

Packet Buffer
• 1 MB per device

Jumbo Frame
• Up to 10,000 Bytes

DIAGNOSTIC LED INDICATORS
• Power (per device)
• PoE Max (per Device)
• Link/Activity/Speed (per 10/100/1000Base-T port)
• Link/Activity/Speed (per SFP port)
• Fan (per device)
• Button to switch LED display mode between PoE and Link/Activity

PHYSICAL & ENVIRONMENTAL
Power Consumption (Standby/Maximum)
• 14W / 238.4W (PoE)

Power Input
• 10 to 240 VAC, 50/60HZ internal universal power supply

Dimensions (W x D x H)
• 440 x 250 x 44 mm

Size
• 19-inch standard rackmounting width or with rackmountable brackets
• 1U Height

Ventilation
• 3 x smart fans

Heat Dissipation
• 813.42 BTU per hour

Temperature
• Operating: -5° to 50°C
• Storage: -20° to 70°C

Humidity
• Operating: 0% ~ 95% non-condensing
• Storage: 0% ~ 95% non-condensing

Certification
• FCC Class A, CE Class A, ICES-003, VCCI Class A, C-Tick, BSMI

Safety
• cUL, LVD
