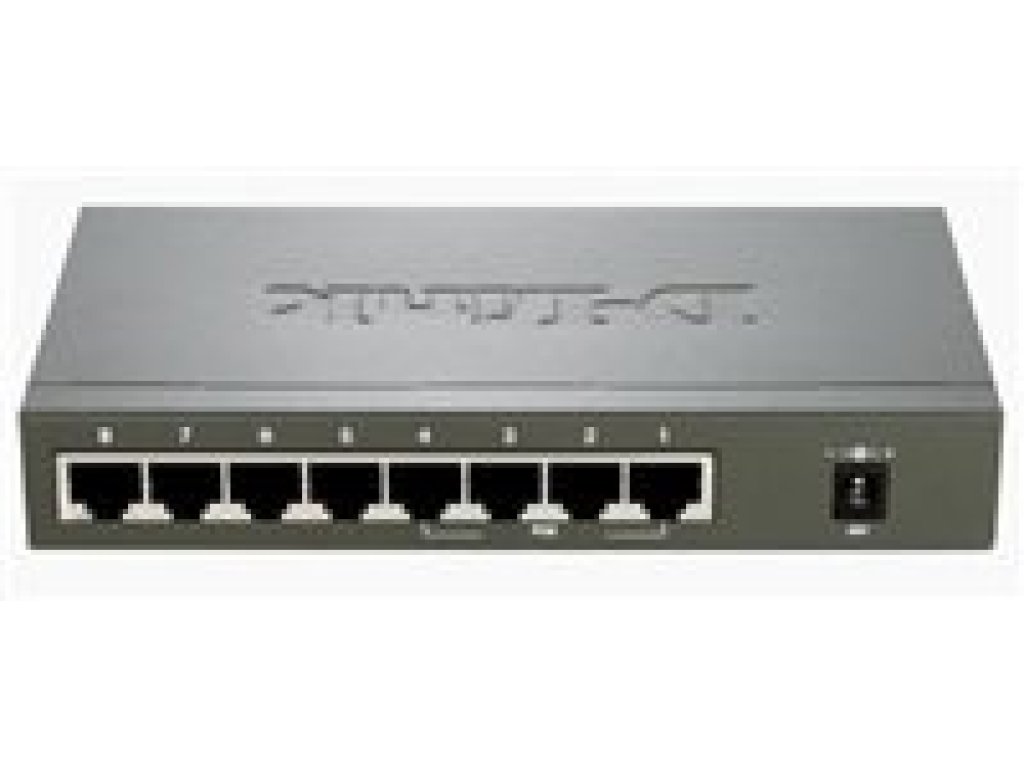

D-Link DES-1008PA 8-port 10/100 Desktop Switch with 4 PoE Ports

D-Link DES-1008PA
8-Port Metal Desktop Switch with 4 PoE Ports

OVERVIEW
The D-Link® 8-Port Fast Ethernet Unmanaged Metal Desktop Switch with 4 PoE Ports (DES-1008PA) enables both home and office users to easily connect and supply power to Power over Ethenet (PoE) devices such as wireless Access Points (APs), IP cameras, and IP phones while adding more Ethernet devices like computers, printers, and Network Attached Storage (NAS) onto a network. Built with home and small business users in mind, this compact PoE switch operates quietly, making it ideal for use in virtually any room or office.

SPECIFICATIONS
Product/Performance Specifications
• MAC Address Table: 1K
• Switch Fabric: 1.6Gbps
• Transmission Method: Store-and-forward
• Packet Buffer Memory: 96KB

Diagnostic LEDs
• Per Unit: Power / PoE Max
• Per Port: Activity / Link & Speed
• PoE port: Power / Status

Interface Options
• RJ-45: 10BASE-T, 100BASE-TX

Network Protocol and Standards
• IEEE: 802.3 Ethernet, 802.3u, 802.3x Flow Control, 802.3af (Power over Data Pairs)

Electrical
• Power Supply: 48V DC/1.45A
• Max Power Consumption: 69 Watts maximum
• PoE budget: Up to 15.4 Watts max per port, for Ports 1-4 Only. 52 Watts Total

Operating Temperature
• Operating: 0° to 40°C
• Storage: -10° to 70°C

Operating Humidity
• 5% to 90% RH, Non-condensing

Certifications
• FCC Class B
• CE
• RoHS

Dimensions
• Item (WxDxH): 170,18 x 99,06 x 27,94 mm
• Packaging (WxDxH): 276,86 x 203,2 x 60,96 mm

Weight
• Item: 0,454 kg
• Packaging: 0,635 kg

Warranty
• Limited Lifetime

Minimum System Requirements
• Devices Supporting 802.3 Ethernet or 802.3u Fast Ethernet
• CAT5 Ethernet Cable
• Network Interface Card for Each Computer
• CD-ROM Drive to View Product Documentation

Package Contents
• 8-Port Desktop Switch with 4 PoE Ports
• Power Adapter
• CD-ROM with Product Documentation
