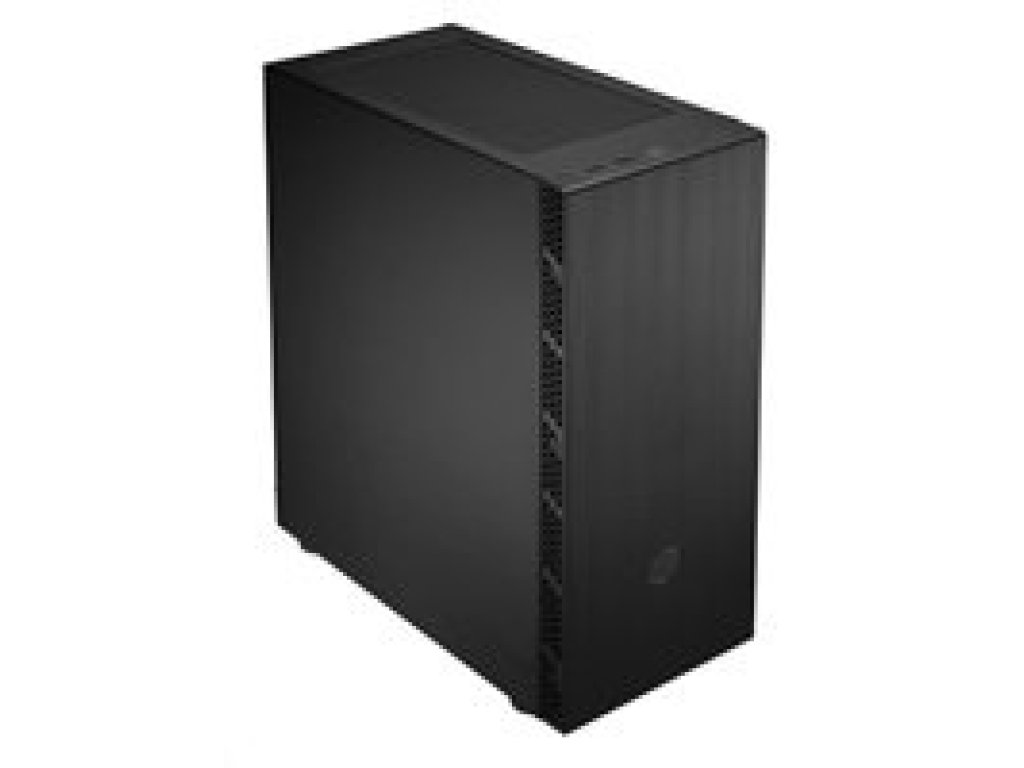

Cooler Master case Master Box MB600L V2 Steel, ATX (MB600L2-KNNN-S00)

MODEL NUMBER

MB600L2-KGNN-S00 (w/o ODD TG), MB600L2-KNNN-S00 (w/o ODD Steel), MB600L2-KG5N-S00 (w/ ODD TG), MB600L2-KN5N-S00 (w/ ODD Steel)

SERIES
MasterBox Series

SIZE
Mid Tower

AVAILABLE COLOR(S)
Black

MATERIALS
Steel, Plastic, Tempered Glass

DIMENSIONS (L X W X H)
405.5x204x455.3mm (incl. Protrusions) (MB600L2-K*NN-S00), 400x204x455.3mm (excl. Protrusions) (MB600L2-K*NN-S00), 460.5x204x455.3mm (incl. Protrusions) (MB600L2-K*5N-S00), 455x204x455.3mm (excl. Protrusions) (MB600L2-K*5N-S00)

VOLUME (EXLC. PROTRUSIONS)
37.15L (MB600L2-K*NN-S00), 42.26L (MB600L2-K*5N-S00)

MOTHERBOARD SUPPORT
Mini ITX, Micro ATX, ATX

EXPANSION SLOTS
7 -
5.25" DRIVE BAYS
0 (MB600L2-K*NN-S00), 1 (MB600L2-K*5N-S00)
2.5" / 3.5" DRIVE BAYS (COMBO)
2
2.5" DRIVE BAYS
2

I/O PANEL
2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)

PRE-INSTALLED FANS
TOP
N/A

PRE-INSTALLED FANS
FRONT
N/A

PRE-INSTALLED FANS
REAR
1x 120mm

FAN SUPPORT
TOP
2x 120/140mm

FAN SUPPORT
FRONT
3x 120mm, 2x 140mm, 3x 120mm (remove ODD bracket) (MB600L2-K*5N-S00)

FAN SUPPORT
REAR
1x 120mm

RADIATOR SUPPORT
TOP
120mm, 240mm, (RAM height limit 32mm; install RAM first, then install radiator)

RADIATOR SUPPORT
FRONT
120mm, 140mm, 240mm, 280mm, 360mm (remove & reinstall ODD bracket to mount 360mm radiator (MB600L2-K*5N-S00)

RADIATOR SUPPORT
REAR
120mm

CLEARANCE - CPU COOLER
161mm

CLEARANCE - PSU
160mm (MB600L2-K*NN-S00), 180mm (MB600L2-K*5N-S00)

CLEARANCE - GFX
350mm (w/o front fans & radiator) (MB600L2-K*NN-S00), 400mm (w/o front fans & radiator) (MB600L2-K*5N-S00)

CABLE ROUTING
18.5mm

DUST FILTERS
Front, Top, Bottom

POWER SUPPLY SUPPORT
Bottom mount, ATX

WARRANTY
2 years
