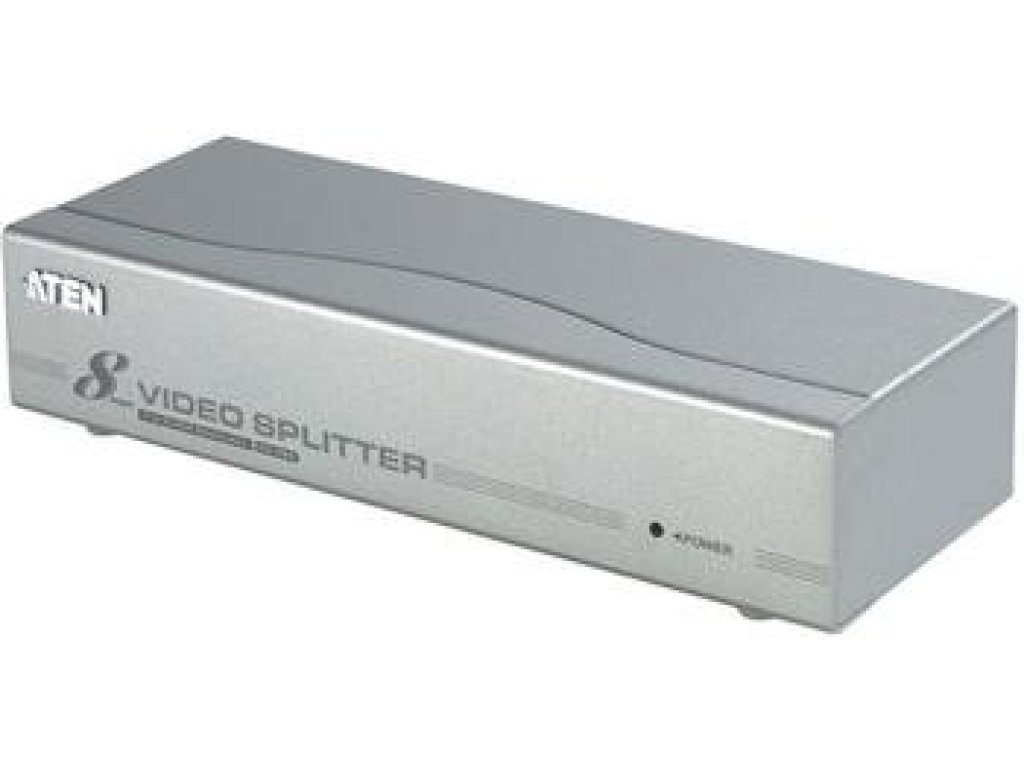

ATEN rozbočovač VGA-8xVGA, M/8xF (VS-98A)

VS98A je video rozbocovac, který duplikuje a zesiluje video signál z jednoho vstupu na 8 výstupu
Rozširuje prenosovou vzdálenost signálu až na 65 metru.
Produkt muže být navíc zarazován do kaskád, takže celkový pocet monitoru je možné navýšit dle potreby.

One video input to 8 video outputs.
Cascadable to 3 levels -provides up to 64 and thousands of video Signals.
Supports up to 200 MHz bandwidth.
Long distance transmission - up to 65m (210').
High video resolution - 1600 x 1200@60Hz
DDC, DDC2, DDC2B Compatible (Port 1 only).
All metal casing.
Supports VGA, XGA, SVGA, UXGA and multisync monitors.
OS Support: Windows 2000, Windows XP, Linux, Mac and Sun

Connectors
Video In 1 x HDB-15 Male (Blue)
Video Out 8 x HDB-15 Female (Blue)

Power 1 x DC Jack (Black)
LEDs Power 1
Video Bandwidth 200 MHz
Video 1600 x 1200 @ 60Hz
Signal Range Up to 65m (210')
Power Consumption DC9V, 2.43W (Max.)
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.53 kg
Dimensions (L x W x H) 20.00 x 7.50 x 4.50 cm


[ENG]

VS98A


8-Port Video Splitter

The VS98A Video splitter duplicates and boosts the video signal from one input to 8 outputs. It provides greater bandwidth and video resolution as well as extends the transmission distance up to 210' making it excellent for public broadcasting. In addition, units can be cascaded to accommodate as many monitors as the installation requires.


Features


One video input to 8 video outputs.
Cascadable to 3 levels -provides up to 512 and thousands of video Signals.
Supports up to 200 MHz bandwidth.
Long distance transmission - up to 65m (210').
High video resolution - 1920 x 1440.
DDC, DDC2, DDC2B Compatible (Port 1 only).
All metal casing.
Supports VGA, XGA, SVGA, UXGA and multisync monitors.
OS Support: Windows 2000, Windows XP, Linux, Mac and Sun



Package Content


1x 8-Port Video Splitter
1x Power Adapter
1x User Manual


Specification


Display Connections 8
Connectors Video In 1 x HDB-15 Male (Blue)
Video Out 8 x HDB-15 Female (Blue)
Power 1 x DC Jack (Black)
LEDs Power 1
Video Bandwidth 200 MHz
Video 1600 x 1200 @ 60Hz
Signal Range Up to 65m (210')
Power Consumption DC9V, 3.6W (Max.)
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 053 kg
Dimensions (L x W x H) 20.00 x 7.50 x 4.50 cm
