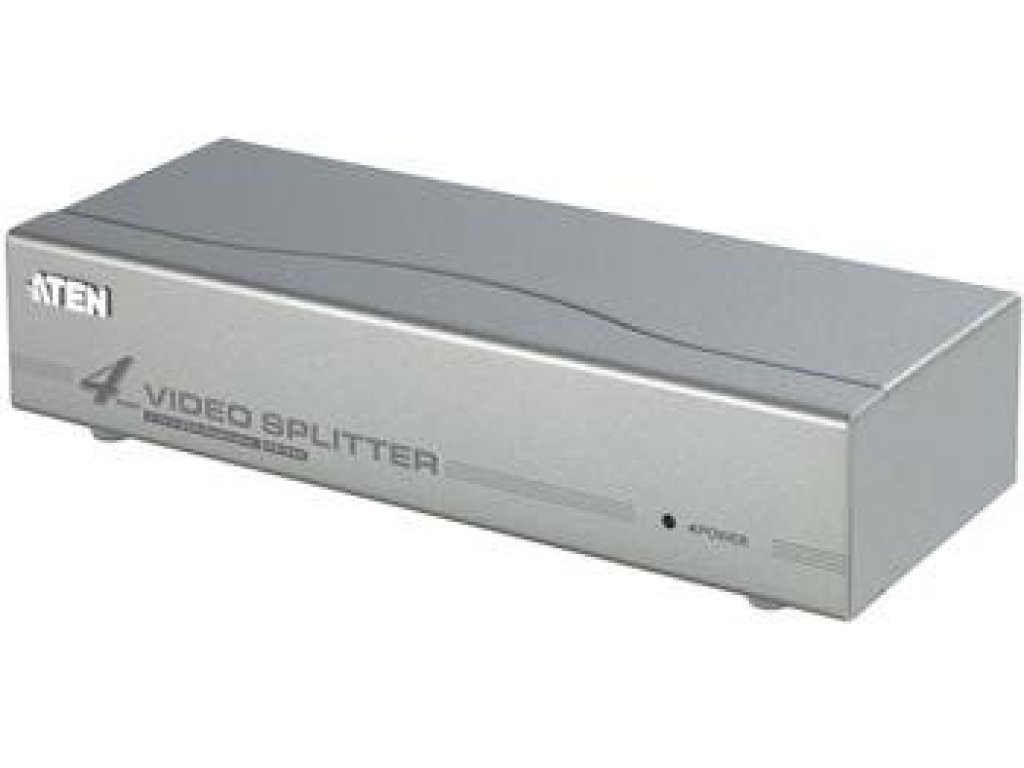

ATEN rozbočovač VGA-4xVGA, M/4xF (VS-94A)

VS94A je video rozbocovac, který duplikuje a zesiluje video signál z jednoho vstupu na 4 výstupy
Rozširuje prenosovou vzdálenost signálu až na 65 metru.
Produkt muže být navíc zarazován do kaskád, takže celkový pocet monitoru je možné navýšit dle potreby.

One video input to 4 video outputs.
Cascadable to 3 levels -provides up to 64 and thousands of video Signals.
Supports up to 350 MHz bandwidth.
Long distance transmission - up to 65m (210').
High video resolution - 1920 x 1440.
DDC, DDC2, DDC2B Compatible (Port 1 only).
All metal casing.
Supports VGA, XGA, SVGA, UXGA and multisync monitors.
OS Support: Windows 2000, Windows XP, Linux, Mac and Sun

Connectors
Video In 1 x HDB-15 Male (Blue)
Video Out 4 x HDB-15 Female (Blue)

Power 1 x DC Jack (Black)
LEDs Power 1
Video Bandwidth 350 MHz
Video 1920 x 1440 @ 60Hz
Signal Range Up to 65m (210')
Power Consumption DC9V, 2.43W (Max.)
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.45 kg
Dimensions (L x W x H) 20.00 x 7.50 x 4.50 cm


[ENG]

VS94A je video rozbocovac, který duplikuje a zesiluje video signál z jednoho vstupu na 4 výstupy
Rozširuje prenosovou vzdálenost signálu až na 65 metru.
Produkt muže být navíc zarazován do kaskád, takže celkový pocet monitoru je možné navýšit dle potreby.

One video input to 4 video outputs.
Cascadable to 3 levels -provides up to 64 and thousands of video Signals.
Supports up to 350 MHz bandwidth.
Long distance transmission - up to 65m (210').
High video resolution - 1920 x 1440.
DDC, DDC2, DDC2B Compatible (Port 1 only).
All metal casing.
Supports VGA, XGA, SVGA, UXGA and multisync monitors.
OS Support: Windows 2000, Windows XP, Linux, Mac and Sun

Connectors
Video In 1 x HDB-15 Male (Blue)
Video Out 4 x HDB-15 Female (Blue)

Power 1 x DC Jack (Black)
LEDs Power 1
Video Bandwidth 350 MHz
Video 1920 x 1440 @ 60Hz
Signal Range Up to 65m (210')
Power Consumption DC9V, 2.43W (Max.)
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.45 kg
Dimensions (L x W x H) 20.00 x 7.50 x 4.50 cm
