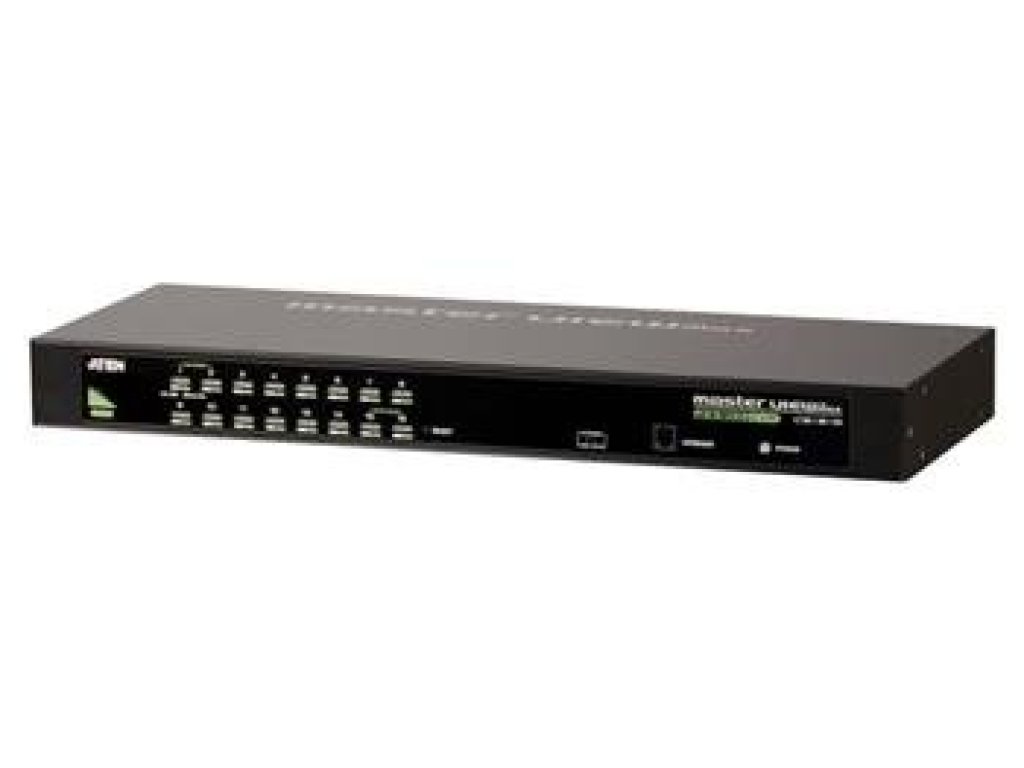

ATEN 16-port KVM PS/2+USB CS-1316A

CS1316A
ATEN 16-port KVM PS/2+USB, OSD, rack 19", kombo konzole
16xPC - 1x VGA + 1x KLÁVESNICE + 1x MYŠ ( vše možno volit USB nebo PS/2)

- rozlišení monitoru až 2048x1536 DDC2B
- možnost pripojit/odpojit PC bez restartu prepínace
- není treba software
- prepínání pomocí hot key, tlacítka, OSD menu
- vestavené OSD menu pro jednoduché nastavení
- auto scan mod pro zjištení pripojených PC
- kaskádovatelný
- pro PS/2 i USB pocítace, reší se kabely
- speciální kabel (priložen) pro pripojení PS/2 nebo USB konzole
- v sade kabel pro upgrade firmware
- vcetne uchytu do racku 19" , výška 1U
- ochrana heslem (administrátor/uživatel)
- cerná barva
- podpora multimediálních klávesnic
- multiplatformní podpora - Windows 2000/XP/Vista/7/8/10, Linux, Mac, a Sun
- exkluzivní provedení, nejvyšší model

Specifikace:
konektory pro vstup
sdružený 15p Canon tríradý Female
(je treba použít sdružený kabel!)

konektory výstup pro konsoli
klávesnice 6p miniDIN(PS/2) Female
myš 6p miniDIN(PS/2) Female
video 15p Canon Female

nebo USB

kabel pro konzoli je priložen

V balení najdete:

1x CS1316 KVM prepínac s kitem do 19" skríne
1x Console kabel
1x Firmware Upgrade kabel
1x Zemnící kabel
1x Nožicky pro umístení na stul (4x )
1x Napájecí adaptér
1x Manuál
1x Quick Start Guide

Podpora Windows 7.
[ENG]

CS1316

16-Port PS/2 - USB KVM Switch

The CS1316 KVM switch allows access and control up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers.


Features


One USB-PS/2 console controls 16 computers
Cascade up to 2 levels - control up to 256 computers
Dual Interface - supports computers with PS/2 or USB keyboards and mice
Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
Supports multimedia USB keyboards for PC, Mac and Sun
Auto PS/2 and USB interface detection
USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
Superior video quality - up to 2048 x 1536; DDC2B
Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
Auto Scan feature for monitoring user-selected computers
Hot pluggable - add or remove computers without having to power down the switch
Buzzer on/off via hotkey and OSD
Firmware upgradeable
No software installation required
Designed for desktop or rack mount (19" system rack, 1U)



Package Content


1x CS1316 KVM Switch with Rack Mount Kit
1x Console cable
1x Firmware Upgrade cable
1x Grounding wire
1x Foot Pad set (4 pads)
1x Power Adapter (AC Models)
1x User Manual
1x Quick Start Guide
