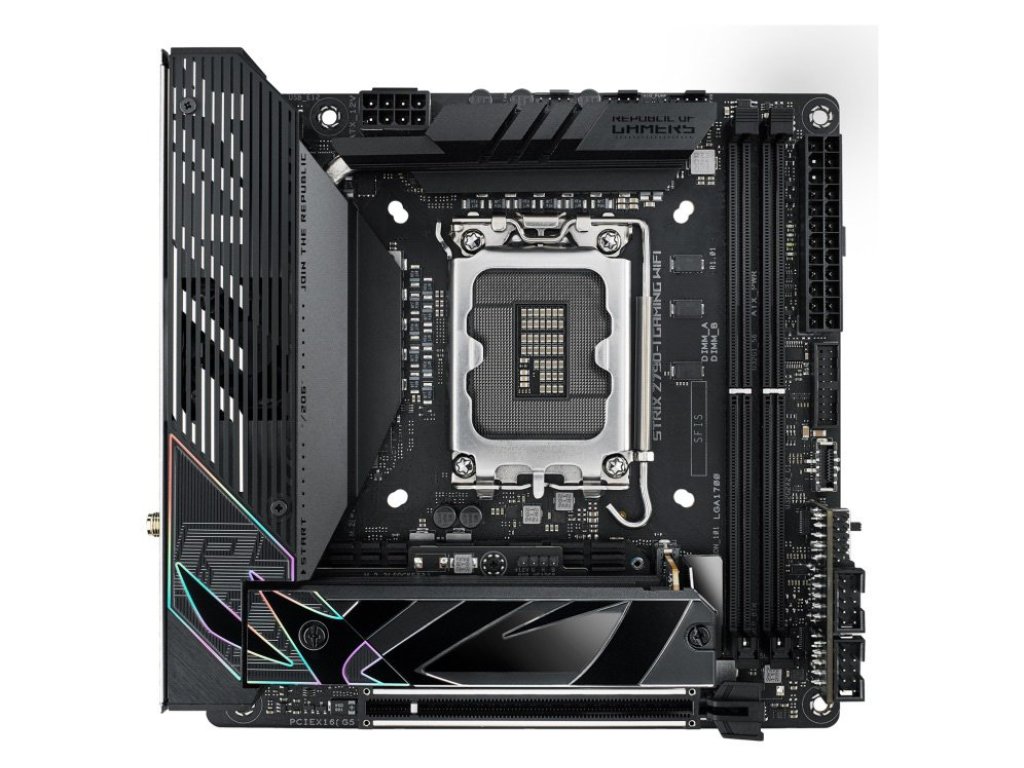

ASUS ROG STRIX Z790-I GAMING WIFI (90MB1CM0-M0EAY0)

Chipset: Intel Z790 Chipset

Rozmerový formát: Mini-ITX Form Factor (17cm x 17cm)
Podpora pro procesory: 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Patice procesoru: LGA 1700

Pozice na pameti: 2 x DIMM, Dual Channel Memory Architecture
Podpora pro pameti: DDR5
7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/5600/ 5400/ 5200/ 5000/ 4800 MHz
Max.velikost operacní pameti: 64 GB
Podpora pro pameti typu: XMP

Grafická karta: (na základe procesoru)
*1 x HDMI port
*2 x Intel Thunderbolt 4 ports

Zvuková karta: ROG High Definition Audio CODEC ALC4050

Sítová karta:
*1 x Intel 2.5Gb Ethernet
*Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
*Bluetooth v5.3

Rozširující sloty: 1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode)

RAID radic: RAID 0/1

SATA: 2 x SATA 6Gb/s ports

M.2: 2 x M.2 slots

USB:
*Interní:
*1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C )
*1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
*Externí:
*1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
*3 x USB 3.2 Gen 2 port(s) (3 x Type-A) (supports ROG STRIX HIVE)
*1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
*2 x USB 2.0 port(s) (2 x Type-A)

Interní porty:
*Fan and Cooling related
*1 x 4-pin CPU Fan header(s)
*1 x 4-pin AIO Pump header(s)
*1 x 4-pin Chassis Fan header(s)
*Power related
*1 x 24-pin Main Power connector
*1 x 8-pin +12V Power connector
*Storage related
*2 x M.2 slots (Key M)
*USB
*1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C)
*1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
*Miscellaneous
*1 x Addressable Gen 2 header(s)
*1 x Aura RGB header(s)
*1 x Thermal Sensor header
*2 x USB Type-C connectors to Install ROG FPS-II card
*ROG FPS-II card
*2 x SATA 6Gb/s ports
*1 x CPU Over Voltage jumper
*1 x Thermal Sensor header
*1 x Front Panel header
*1 x Alternative PCIe Mode switch
*2 x USB 2.0 header(s) support(s) additional
*3 USB 2.0 ports

Externí porty:
*2 x Thunderbolt 4 USB Type-C port(s)
*1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
*3 x USB 3.2 Gen 2 port(s) (3 x Type-A)(supports ROG STRIX HIVE)
*1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
*2 x USB 2.0 port(s) (2 x Type-A)
*1 x HDMI port
*1 x Wi-Fi Module
*1 x Intel 2.5Gb Ethernet port
*1 x Clear CMOS button

BIOS: UEFI AMI BIOS, 256 Mb Flash ROM
