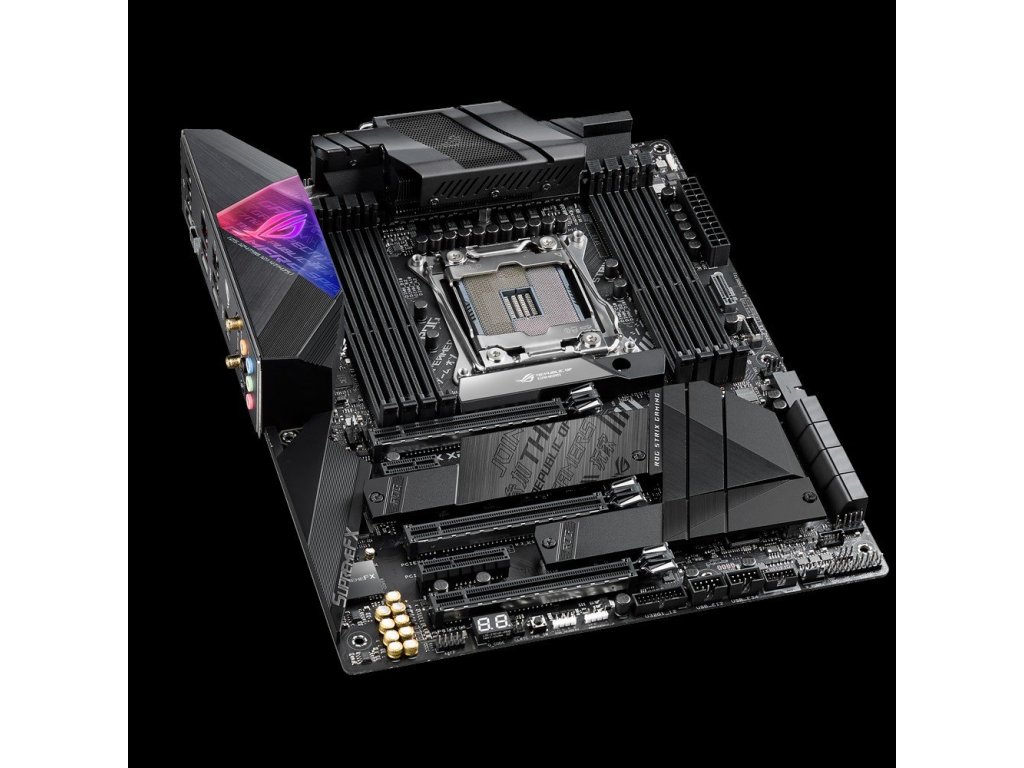

ASUS ROG STRIX X299-E GAMING II (90MB11A0-M0EAY0)

Chipset: Intel® X299

Rozmerový formát: ATX Form Factor
Podpora pro procesory: Intel® Socket 2066 Core™ X-Series Processors
Patice procesoru: LGA 2066

Sloty na pameti: 8 x DDR4 DIMM, Quad Channel Memory Architecture
Podpora pro pameti:
*Intel® Core™ i9 10000 X-Series CPU (4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory)
*Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU (4266(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory)
Max.velikost operacní pameti: 256 GB

Podpora více GPU
*NVIDIA® 3-Way SLI® Technology
*NVIDIA® 2-Way SLI® Technology
*AMD 3-Way CrossFireX™ Technology
*AMD 2-Way CrossFireX Technology

Bluetooth: Bluetooth® 5.0
Zvuková karta: SupremeFX 8-Channel High Definition Audio CODEC S1220A
Sítová karta:
*Intel® I219V
*Realtek® RTL8125-CG 2.5G LAN
*Intel® Wi-Fi 6 AX200

Rozširující sloty:
*48-Lane CPU-(Intel® Core™ i9 10000 X-Series CPU): 3 x PCIe 3.0 x16 (x16, x16/x16, x16/x16/x8)
*44-Lane CPU-(Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU): 3 x PCIe 3.0 x16 (x16, x16/x16, x16/x16/x4)
*28-Lane CPU-(Intel® Core™ i7 7000 X-Series CPU): 3 x PCIe 3.0 x16 ( x16, x16/x8, x16/x8/x4)
*Intel® X299 Chipset: 1x PCIe 3.0 x4, 1x PCIe 3.0 x1
RAID radic: RAID 0, RAID 1, RAID 5 a RAID 10

SATA: 8x SATA 6Gb/s
M.2: 3x M.2 Socket 3

Interní porty:
*1x AAFP connector
*2x Aura RGB Strip Headers
*2x Addressable Gen 2 header(s)
*2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
*1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
*2x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
*8x SATA 6Gb/s connector(s)
*1x VROC_HW_Key
*1x CPU Fan connector(s)
*1x CPU OPT Fan connector(s)
*2x Chassis Fan connector(s)
*1x AIO_PUMP connector
*1x W_PUMP+ connector
*1x 24-pin EATX Power connector(s)
*2x 8-pin ATX 12V Power connector(s)
*1x Front panel connector(s)
*1x System panel(s) (Q-Connector)
*1x Thermal sensor connector(s)
*1x Power-on button(s)
*1x Clear CMOS jumper(s)
*1x Node Connector(s)
*1x CPU_OV jumper
*1x M.2 Fan Header
*2x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports

Externí porty:
*1x LAN (RJ45) port(s)
*4x USB 2.0 (one port can be switched to USB BIOS FlashBack™)
*1x Optical S/PDIF out
*5x Audio jack(s)
*1x Anti-surge 2.5G LAN (RJ45) port
*1x Wi-Fi antenna port(s)
*1x USB BIOS FlashBack™ Button(s)
*2x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A
*4x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C)

BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Príslušenství:
*Uživatelská prírucka
*1x Sada svislých držáku M.2
*4x SATA 6Gb/s cable(s)
*1x M.2 balícek šroubku
*1x Supporting DVD
*1x ROG Strix nálepky
*1x Q-Connector
*1x M.2 sada šroubku (dlouhé šroubky a upevnení)
*1x Balícek kabelových svazku
*1x Wi-Fi Anténa
*1x ROG Door Hanger(s)
*1x Prodlužovací kabel pro RGB pásky (80 cm)
*1x Prodlužovací kabel pro adresovatelnou LED
*1x Thermistor cable(s)
*1x ROG dekovná karticka

Stránky výrobce: https://www.asus.com/Motherboards/ROG-Strix-X299-E-Gaming-II/overview/
