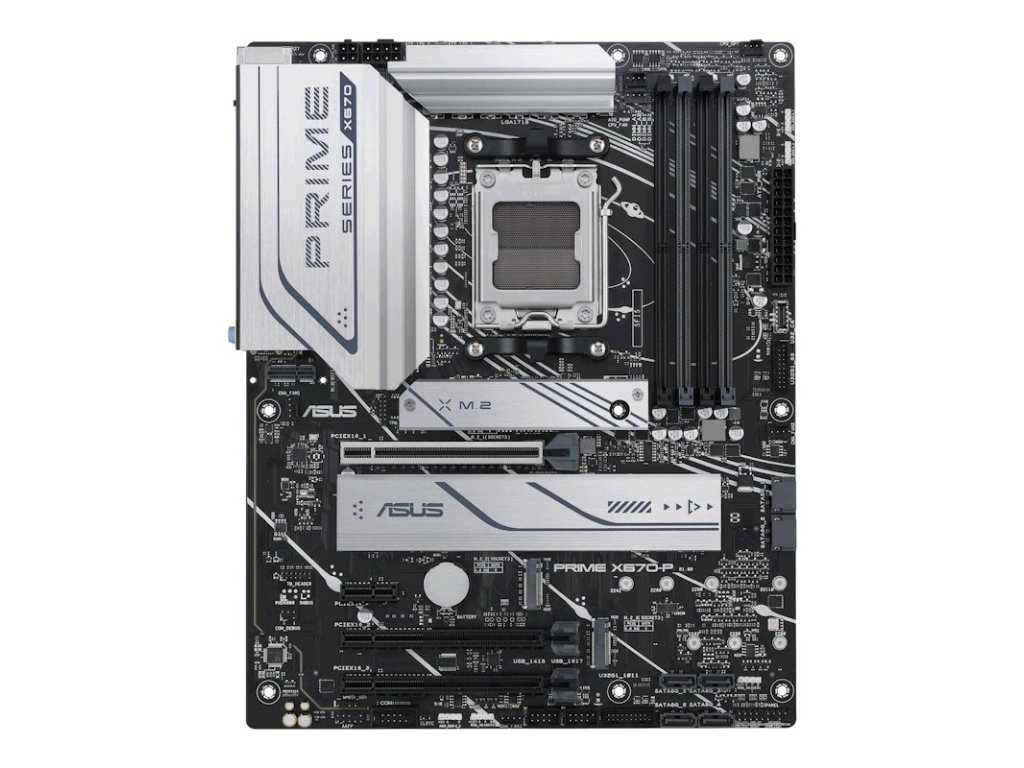

ASUS PRIME X670-P-CSM (90MB1BU0-M0EAYC)

Chipset: AMD X670 Chipset

Rozmerový formát: ATX Form Factor (30.5 cm x 24.4 cm)
Podpora pro procesory: AMD Ryzen 7000 Series Desktop Processors
Patice procesoru: AM5

Pozice na pameti: 4 x DIMM, Dual Channel Memory Architecture
Podpora pro pameti: DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 MHz
Max.velikost operacní pameti: 128 GB
Podpora pro pameti typu: ECC, Non-ECC

Grafická karta: (na základe procesoru)
*1 x DisplayPort 1.4
*1 x HDMI 2.1port

Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC

Sítová karta: 1 x Realtek 2.5Gb Ethernet

Rozširující sloty:
*1 x PCIe 4.0 x16 slot (supports x16 mode)
*2 x PCIe 4.0 x16 slots (support x4 mode)
*1 x PCIe 3.0 x1 slot

RAID radic: RAID 0/1/10

SATA: 6 x SATA 6Gb/s ports

M.2: 3 x M.2 slots

USB:
*Interní:
*1 x USB 3.2 Gen 1 connector (supports USB Type-C)
*2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 4 USB 2.0 ports
*Externí:
*1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
*3 x USB 3.2 Gen 2 ports (3 x Type-A)
*4 x USB 3.2 Gen 1 ports (4 x Type-A)
*2 x USB 2.0 ports (2 x Type-A)

Interní porty:
*Fan and Cooling related
*1 x 4-pin CPU Fan header
*1 x 4-pin CPU OPT Fan header
*1 x 4-pin AIO Pump header
*3 x 4-pin Chassis Fan headers
*Power related
*1 x 24-pin Main Power connector
*1 x 8-pin +12V Power connector
*1 x 4-pin +12V Power connector
*Storage related
*3 x M.2 slots (Key M)
*6 x SATA 6Gb/s ports
*USB
*1 x USB 3.2 Gen 1 connector (supports USB Type-C)
*2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 4 USB 2.0 ports
*Miscellaneous
*3 x Addressable Gen 2 headers
*2 x Aura RGB headers
*1 x Clear CMOS header
*1 x COM Port header
*1 x Front Panel Audio header (AAFP)
*1 x S/PDIF Out header
*1 x SPI TPM header (14-1pin)
*1 x 20-5 pin System Panel header
*1 x Thunderbolt (USB4) header

Externí porty:
*1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
*3 x USB 3.2 Gen 2 ports (3 x Type-A)
*4 x USB 3.2 Gen 1 ports (4 x Type-A)
*2 x USB 2.0 ports (2 x Type-A)
*1 x DisplayPort
*1 x HDMI port
*1 x V-M.2 slot (Key E)
*1 x Realtek 2.5Gb Ethernet port
*3 x Audio jacks
*1 x BIOS FlashBack button
*1 x PS/2 Keyboard/Mouse combo port

BIOS: UEFI AMI BIOS, 256 Mb Flash ROM
