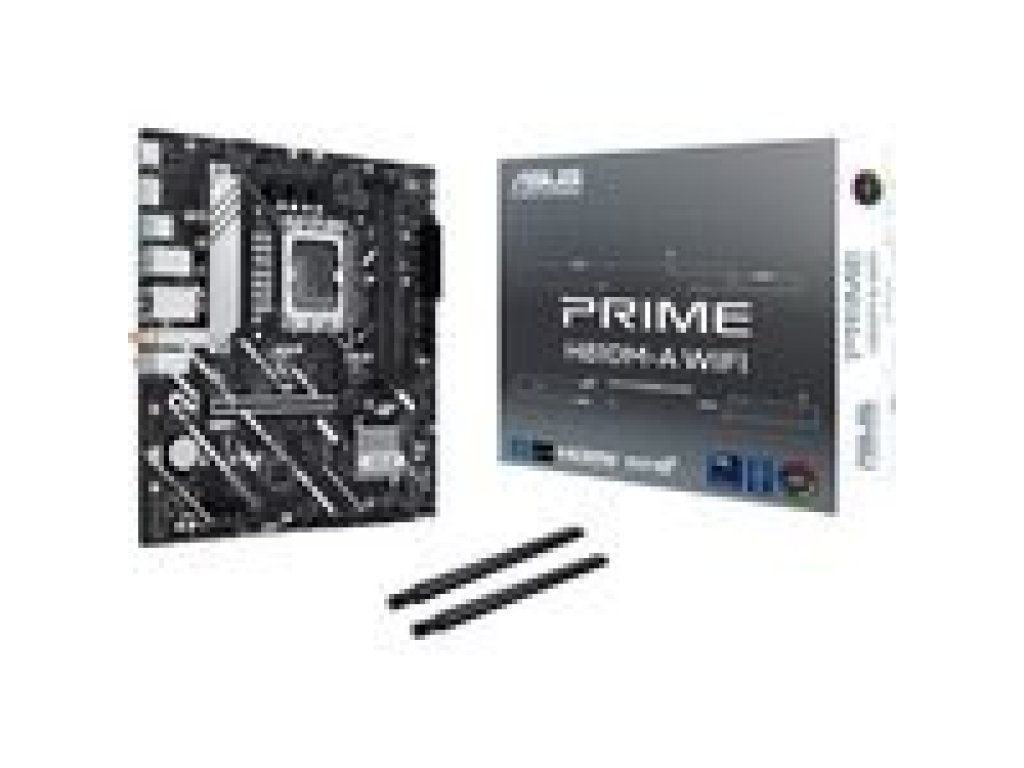

ASUS PRIME H810M-A WIFI (90MB1KJ0-M0EAY0)

ASUS PRIME H810M-A WIFI

* mATX Form Factor

CPU: Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 - Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset: Intel H810 Chipset

Pamet: 2 x DIMM slots, max. 128GB, DDR5
*Podporuje až 6400MT/s, bez vyrovnávací pameti, bez vyrovnávací pameti, s taktováním a bez vyrovnávací pameti *DIMM (CUDIMM)
*Dvoukanálová architektura pameti
*DIMM Fit
*Podporuje pametový modul Intel® Extreme Memory Profile (XMP)
*ASUS Enhanced Memory Profile II (AEMP II)

Grafické porty:
1 x DisplayPort
1 x HDMI™ port

Rozširující sloty:

Intel® Core™ Ultra Processors (Series 2)
*1 x PCIe 4.0 x16 slot
Intel® H810 Chipset
*1 x PCIe 4.0 x1 slot

Úložný prostor:
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H810 Chipset
*M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
*M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
*4 x SATA 6Gb/s ports

Ethernet:
*1 x Intel® 1Gb Ethernet port
*ASUS LANGuard

Pripojení a Bluetooth:
*Wi-Fi 6
*1x1 Wi-Fi 6 (802.11ax)
*Supports 2.4/5GHz frequency band
*Bluetooth® v5.3

USB:
Zadní USB (Total 7 ports)
*2 x USB 10Gbps ports (2 x Type-A)
*4 x USB 2.0 ports (4 x Type-A)
Prední USB (Total 7 ports)
*1 x USB 5Gbps connector (supports USB Type-C®)
*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
*1 x USB 2.0 header supports 2 additional USB 2.0 ports
Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC
*Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
*Supports up to 24-Bit/192 kHz playback
Audio Features
*Audio Shielding
*Premium audio capacitors
*Dedicated audio PCB layers
Vstupy/výstupy zadního panelu:
*2 x USB 10Gbps ports (2 x Type-A)
*4 x USB 2.0 ports (4 x Type-A)
*1 x DisplayPort
*1 x HDMI™ port
*1 x Wi-Fi module
*1 x Intel® 1Gb Ethernet port
*3 x Audio jacks
*1 x PS/2 keyboard/mouse combo port
Interní vstupy/výstupy:
Ventilátory a chlazení:
*1 x 4-pin CPU Fan header
*2 x 4-pin Chassis Fan headers
Napájení:
*1 x 24-pin Main Power connector
*1 x 8-pin +12V CPU Power connector
Úložište:
*2 x M.2 slots (Key M)
*4 x SATA 6Gb/s ports
USB:
*1 x USB 5Gbps connector (supports USB Type-C® )
*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
*1 x USB 2.0 header supports 2 additional USB 2.0 ports
Ruzné:
*3 x Addressable Gen2 headers
*1 x Clear CMOS header
*1 x COM Port header
*1 x Front Panel Audio header (F_AUDIO)
*1 x S/PDIF Out header
*1 x SPI TPM header (14-1 pin)
*1 x 10-1 pin Front Panel System header
Príslušenství:
Kabely:
*2 x SATA 6Gb/s cables
Ruzné:
*1 x ASUS Wi-Fi moving antenna
*1 x I/O shield
*1 x Screw package for M.2 SSD
Dokumenty:
*1 x Quick start guide
